Description
Durable Outdoor Canopy Fixture With IP65 Wet Rating And CCT Selectable For Parking, Walkways, And Entryways

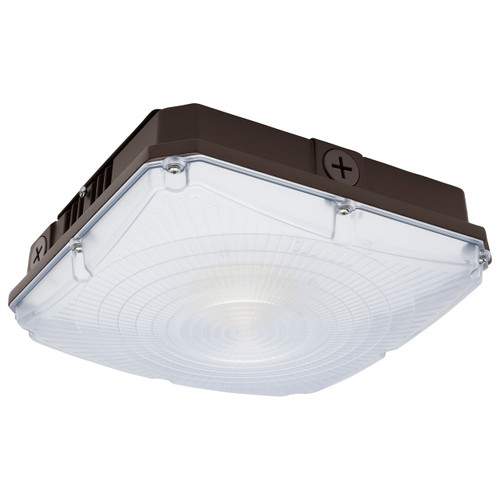

Designed to upgrade outdoor security and utility lighting, the Satco 65-982 is an 8.5-inch integrated LED canopy fixture that delivers field-selectable wattage and color temperatures while reducing maintenance and energy costs.
KEY FEATURES:
- Field-Selectable Performance: Choose 25W, 30W, or 40W to match site illumination and energy goals.
- Selectable Color Temperatures: Switch between 3000K, 4000K, and 5000K to suit ambient conditions and visual tasks.
- Integrated Motion Sensor: Built-in sensor enables bi-level control for added energy savings and security.
- Durable Construction: Die-cast aluminum housing with UV-stabilized bronze powder coat finish and polycarbonate lens.
- Wet-Location Ready: IP65 rated for outdoor use with built-in 4KV surge protection.
- Low Maintenance: Integrated LED rated 50,000 hours with a 5-year warranty.
APPLICATIONS:
- Ideal for parking garages, building entryways, and covered walkways.
- Suitable for commercial and multi-family exterior canopy installations.
- Good fit for utility and service areas requiring reliable, sensor-ready illumination.
- Usage Tip: Set wattage and CCT during installation to optimize energy use and reduce light trespass.
SPECIFICATIONS:
- Wattage: 25W / 30W / 40W
- Lumens: 3,125 – 5,400
- Color Temperature: 3000K / 4000K / 5000K
- CRI: 80+
- Rated Hours: 50,000
- Dimming: 0-10V Bi-Level Dimmable
- Voltage: 120-277V
- Power Factor: 0.9
- Beam Angle: 150°
- Operating Temp: -30°C to +45°C
- Finish: Bronze
- Material: Die-Cast Aluminum with Polycarbonate Lens
- IP Rating: IP65
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: cULus Listed
- DLC: Approved
- FCC Compliance: True
- RoHS Compliance: Yes
- Surge Protection: Built-in 4KV
- Warranty: 5-Years
