Description

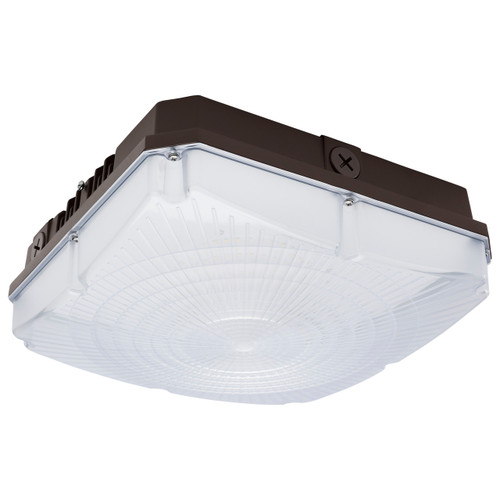

Outdoor 10in Canopy Light For Parking, Entryways And Security | Field-Selectable Color Temperatures From Soft White To Daylight
Specifically designed for parking, entryway, and perimeter canopy applications, this Satco fixture delivers flexible, high-output LED illumination while reducing maintenance and energy use compared with legacy HID luminaires. Field-selectable power and color temperature settings allow installers to tailor light levels and color tone on-site for optimized coverage and occupant comfort.
KEY FEATURES:
- Field-Selectable Output: True wattage selectable between 45W, 60W, and 70W for easy lumen tuning on installation.
- Adjustable CCT: Select 3000K, 4000K, or 5000K on-site to match ambient lighting needs.
- Integrated Sensor: Built-in motion sensing and bi-level dimming options reduce energy use in low-traffic periods.
- Robust Outdoor Design: Die-cast aluminum housing with UV-stable bronze powder coat and polycarbonate lens for durable wet-location performance.
- Surge Protection: 4KV built-in surge protection improves reliability in harsh electrical environments.
APPLICATIONS:
- Ideal for parking garages, gas station canopies, and building entryways requiring dependable outdoor illumination.
- Well suited for commercial and municipal perimeter lighting where motion-activated savings are desired.
- Works in retrofit and new-construction canopy mounts to replace HID fixtures with lower-maintenance LEDs.
- Installation tip: Use field-selectable wattage to balance spacing and mounting height for even coverage while minimizing glare.
SPECIFICATIONS:
- Wattage: 45W / 60W / 70W
- Lumens: 5,625 - 9,450
- Color Temperature: 3000K / 4000K / 5000K
- CRI: 80+
- Dimming: 0-10V Dimming; Bi-Level Dimmable
- Voltage: 120-277V
- Power Factor: 0.9
- THD: 9.50%
- Rated Life: 50,000 hours
- IP Rating: IP65 (Wet Location)
- Lens Material: Polycarbonate (PC)
- Housing: Die-cast Aluminum, Bronze Finish (UV stabilized powder coat)
- Surge Protection: 4KV
- Lamp Type: Integrated LED
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: cULus Listed
- DLC: DLC Approved
- FCC: FCC Compliant
- RoHS: RoHS Compliant
- California: T20 Exempt - Fixtures Not Regulated
