Description

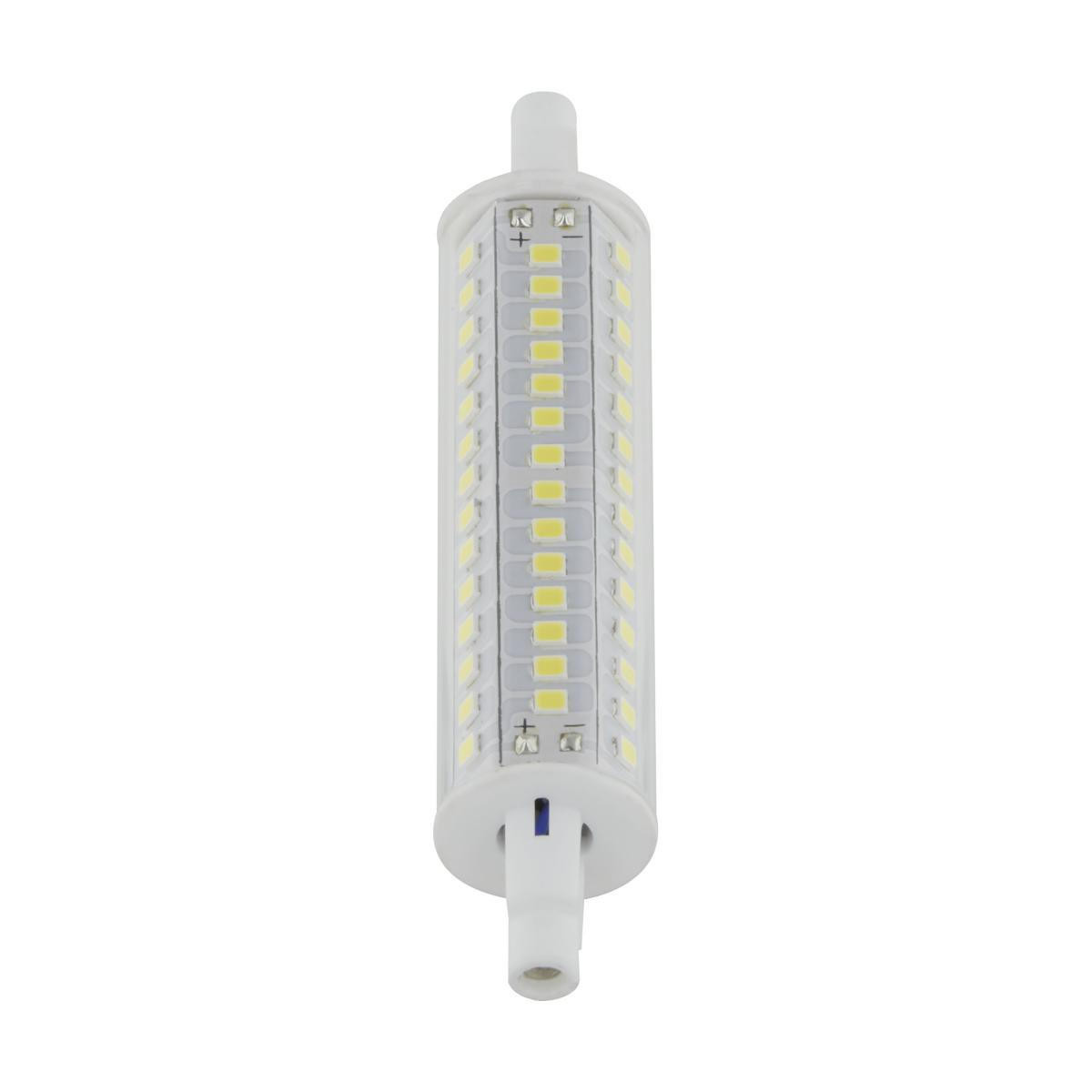

10W/LED/T3/118MM/830/120V/D Double-Ended J-Type LED Replacement | Soft White | R7s Socket | Dimmable 118mm Halogen Upgrade
Upgrade legacy halogen flood lamps with an energy-saving J-Type LED designed to fit 118mm R7s fixtures. Enjoy warm, comfortable 3000K illumination with smooth dimming, lower heat output, and reduced maintenance in floodlights, work lights, and display fixtures.
KEY FEATURES:
- Fast Retrofit: Fits standard 118mm R7s holders for a quick halogen-to-LED upgrade.
- Warm, Comfortable Light: 3000K output delivers a familiar halogen tone.
- Dimmable Control: Adjust brightness on compatible dimmers to suit the task.
- Enclosed Fixture Rated: Safe for use in sealed housings to expand application options.
- Reduced Maintenance: Durable design with long service life cuts relamping frequency.
APPLICATIONS:
- Security and area floodlights.
- Display and accent fixtures with R7s sockets.
- Garage and workshop task lights.
- Usage Tip: Confirm 118mm length and R7s socket compatibility before installation.
SPECIFICATIONS:
- Wattage: 10W
- Incandescent Equivalent: 75W
- HID Equivalent: 100W
- Voltage: 120V
- Lumens: 1100
- CCT (Kelvin): 3000
- CRI: 80
- Beam Spread: 200
- Dimmable: Yes
- Lamp Type: J-Type
- Shape: T3
- Base: Double Contact Recessed (R7s)
- Length: 118mm
- MOL: 4.65
- MOD: 0.98
- Operating Frequency: 60 Hz
- Candlepower: 150
- Power Factor: 0.7
- Operating Temperature: -20C to +45C
- Lens Finish: Clear
- Lens Material: Polycarbonate (PC)
- Housing Color: White
- Weight: 0.11 lb.
- Rated For Enclosed Fixture: Yes
- Hours Rated: 15000
- Safety Listing: cULus
- Location Rating: Damp
- RoHS Compliant: Yes
- FCC Compliant: Yes
- Energy Star: No
- Warranty: 3 Year Limited
- Technology: LED
