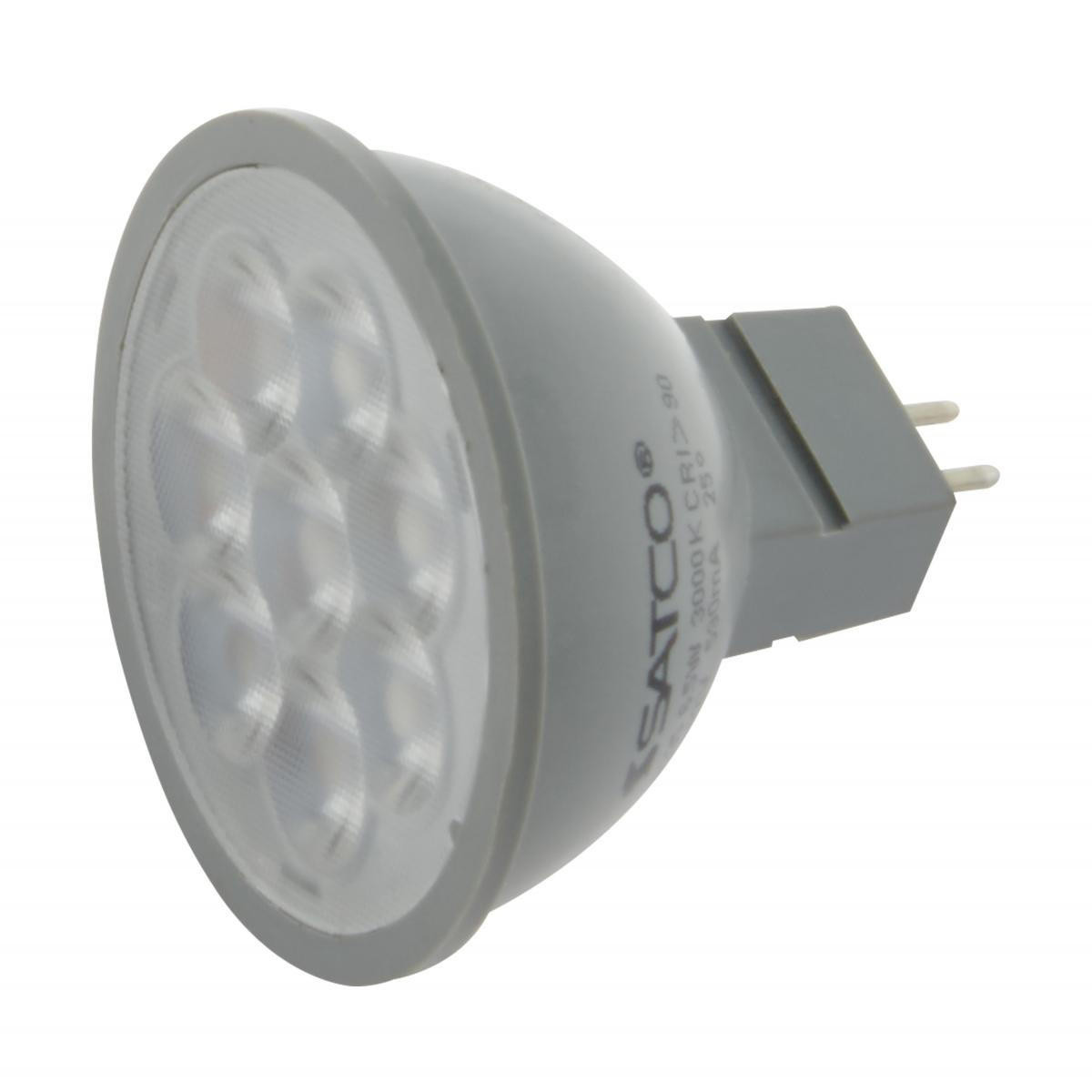

6MR16/LED/40'/850/24V AC/DC Compact MR16 LED Flood Lamp | Daylight | GU5.3 Bi-Pin Base With 40° Beam And Dimmable Operation
Upgrade from 50W halogen to a long-lasting, energy-saving LED that installs quickly and reduces maintenance. This Satco MR16 delivers crisp daylight output with a controlled 40° flood beam, smooth dimming, and reliable performance even in enclosed fixtures for dependable operation in demanding applications.
KEY FEATURES:
- Efficient Replacement: Uses only 6W while replacing 50W halogen for significant energy savings.
- Clean Daylight Output: 5000K illumination enhances visibility and color clarity.
- Controlled Beam: 40° flood delivers focused, uniform accent lighting.
- Smooth Dimming: Fine-tune light levels to suit the environment.
- Enclosed-Rated: Safe for use in sealed fixtures; damp location listed.
APPLICATIONS:
- Retail display lighting
- Hospitality accent fixtures
- Residential recessed or track lighting
- Usage Tip: Aim the 40° beam to highlight focal points without glare.
SPECIFICATIONS:
- Wattage: 6W
- Incandescent Equivalent: 50W
- Voltage: 24V AC/DC
- Shape: MR16
- Base: GU5.3 (Bi Pin)
- Color Temperature: 5000K
- CRI: 80
- Lumens: 550 lm
- Beam Angle: 40°
- Dimmable: Yes
- Operating Frequency: 60 Hz
- CBCP: 1200
- Power Factor: 0.92
- Operating Temperature: -25C (-4F) to +45C (+113F)
- MOL: 1.78 in
- MOD: 1.97 in
- Lensed: Yes
- Lens Material: Plastic (PS)
- Housing Color: Gray
- Weight: 0.084 lb.
- Rated For Enclosed Fixture: Yes
- Location Rating: Damp
- Safety Listing: cULus
- California T24 Compliant: Yes
- RoHS Compliant: Yes
- FCC Compliant: Yes
- Hours Rated: 25,000
- Warranty: 5 Year Limited - 10 hr per day
