Description

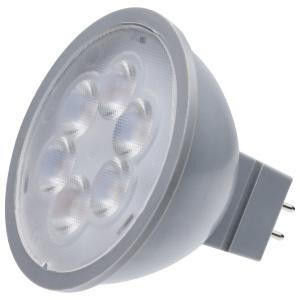

4.5MR16/LED/15'/850/12V Compact Low-Voltage MR16 LED Spotlight | Bright Daylight | GU5.3 Bi-Pin Base | Dimmable Narrow Spot
Upgrade accent lighting with focused precision and low maintenance. This 4.5W LED MR16 delivers Bright Daylight clarity and a tight 15° beam for dramatic highlights. It dims smoothly with compatible transformers, is rated for enclosed fixtures, and performs reliably in damp locations—ideal for display, retail, and architectural accents.
KEY FEATURES:
- Pinpoint Highlighting: 15° narrow spot concentrates light for crisp, focused accents.
- Quick Retrofit: GU5.3 bi-pin base fits most existing 12V MR16 fixtures.
- Flexible Ambiance: Dimmable with compatible transformers for tailored light levels.
- Reliable Anywhere: Enclosed-fixture and damp-location rated for broader application.
- Punchy Output: High CBCP for impactful beam intensity on target objects.
APPLICATIONS:
- Retail displays and product showcases
- Museums and gallery accent lighting
- Hospitality lobbies and corridors
- Usage tip: Aim the 15° beam ~30° from vertical to reduce glare and hot spots.
SPECIFICATIONS:
- Wattage: 4.5W
- Lumens: 360
- CCT: 5000K
- CRI: 80
- Beam Spread: 15°
- Dimmable: Yes (check transformer/driver manufacturer for compatibility)
- Voltage: 12V
- Base: GU5.3 (Bi Pin)
- Shape: MR16
- Operating Frequency: 60Hz
- CBCP: 3000
- Power Factor: 0.94
- Operating Temperature: -25C (-13F) to +45C (+113F)
- MOL: 1.77
- MOD: 1.97
- Lensed: Yes
- Lens Material: Plastic
- Lens Finish: Array
- Housing Color: Gray
- Weight: 0.08 lb.
- Rated For Enclosed Fixtures: Yes
- Hours Rated: 25,000
- Warranty: 5 Year Limited (10 hr/day)
- Safety Listing: cULus
- Location Rating: Damp
- Energy Star: No
- California Title 20: Listed
- California Status: Lawful for sale in California
- RoHS Compliant: Yes
- FCC Compliant: Yes
