Description

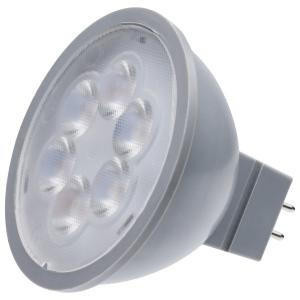

4.5MR16/LED/40'/850/12V Compact Dimmable MR16 LED Flood | Daylight | GU5.3 Bi-Pin Base, 40° Beam, Enclosed Fixture Rated
Upgrade halogen MR16s with an energy-saving LED that installs quickly and delivers crisp, focused illumination. This 4.5W, dimmable, GU5.3 MR16 provides clean Daylight output, reduces maintenance with a 25,000-hour life, and is rated for use in enclosed fixtures—ideal for reliable accent lighting in demanding spaces.
KEY FEATURES:
- Easy Retrofit: GU5.3 bi-pin base fits standard low-voltage MR16 sockets.
- Controlled Beam: 40° flood distribution highlights products and architectural details.
- Quality Light: Daylight 5000K with 80 CRI for crisp, accurate presentation.
- Reliable Dimming: Smooth performance when paired with compatible transformers and dimmers.
- Enclosed Rated: Safe for enclosed fixtures to expand installation options.
APPLICATIONS:
- Retail display cases, product shelves, and showrooms.
- Residential track heads and recessed accent fixtures.
- Hospitality lobbies, corridors, and reception areas.
- Usage Tip: Verify transformer and dimmer compatibility per manufacturer guidance.
SPECIFICATIONS:
- Lamp Type: MR16 LED
- Wattage: 4.5W
- Incandescent Equivalent: 35W
- Voltage: 12V
- Base: GU5.3 (Bi Pin)
- CCT: 5000K
- CRI: 80
- Lumens: 360
- Beam Angle: 40°
- CBCP: 730
- Dimmable: Yes (check transformer/driver manufacturer for dimmer compatibility)
- Power Factor: 0.94
- Operating Frequency: 60Hz
- Operating Temperature: -25°C (-13°F) to +45°C (+113°F)
- Hours Rated: 25,000
- Enclosed Fixture Rated: Yes
- Location Rating: Damp
- Finish / Housing Color: Gray
- Lensed: Lensed Lamp
- Lens Material: Plastic
- Lens Finish: Array
- MOL: 1.77
- MOD: 1.97
- Weight: 0.08 lb.
- Warranty: 5 Year Limited (10 hr/day)
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cULus
- Energy Star: No
- California Title 20: Listed
- California Status: Lawful for sale
- RoHS Compliant: Yes
- FCC Compliant: Yes
