Description

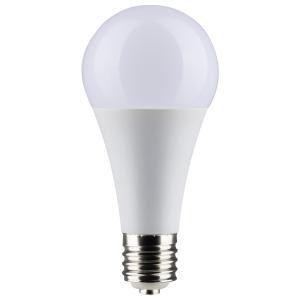

36PS30/LED/850/120V/DIM/E39 High-Output PS30 LED Replacement Bulb | Daylight | E39 Mogul Base | Smooth Dimming In Large Spaces
Upgrade large-area fixtures quickly with this dimmable PS30 LED. Delivering bright, crisp daylight and a wide 220° spread, it replaces 300W incandescent bulbs while using only 36W—cutting energy and maintenance in barns, shops, and warehouses. The E39 mogul base installs easily and performs reliably in demanding environments.
KEY FEATURES:
- Fast Retrofit: E39 mogul base simplifies upgrades in high-bay and large-area fixtures.
- Clear Visibility: 4500 lumens of daylight illumination enhances task performance.
- Smooth Control: 120V dimming with smooth performance below 10% for comfortable ambiance.
- Wide Coverage: 220° beam angle delivers uniform light in broad spaces.
- Reduced Maintenance: 15,000-hour life minimizes relamping and downtime.
- All-Season Performance: Operates from -20C (-4F) to +40C (+104F) in tough conditions.
- Damp Location Ready: Suitable for covered areas in commercial and agricultural settings.
- Open Fixture Use: Not approved for totally enclosed fixtures to ensure proper cooling.
APPLICATIONS:
- Warehouses
- Barns
- Workshops
- Usage Tip: Use only in open or ventilated fixtures; not approved for totally enclosed fixtures.
SPECIFICATIONS:
- Wattage: 36W
- Incandescent Equivalent: 300W
- Voltage: 120V
- Shape: PS30
- Base: E39 Mogul (ANSI E39)
- Finish: White
- Color Temperature: 5000K
- CRI: 80
- Lumens: 4500
- Beam Spread: 220°
- Dimmable: Yes (120V only)
- Operating Frequency: 60Hz
- Power Factor: 0.98
- Operating Temperature: -20C (-4F) to +40C (+104F)
- MOL: 7.91
- MOD: 3.74
- Weight: 0.71 lb.
- Hours Rated: 15,000
- Lamp Type: Type A
- Rated For Enclosed Fixture: No
- Technology: LED
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cETLus
- Location Rating: Damp
- RoHS Compliant: Yes
- California Status: Lawful for sale; Title 20/24 compliant
- Energy Star: No
