Description

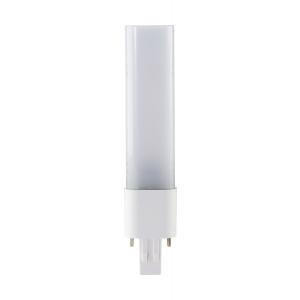

5.5W/LED/CFL/827/2P/DUAL Compact 2-Pin PL LED Retrofit | Warm White | GX23 Plug-In | Dual Operation Type A/B For Ballast Or Bypass
Streamline CFL-to-LED upgrades with a versatile 2-pin GX23 replacement that works on existing ballasts or direct line voltage. Delivering cozy Warm White illumination and a 50,000-hour lifetime, this lamp cuts maintenance, simplifies retrofits, and improves lighting quality in common areas and hospitality spaces.
KEY FEATURES:
- Flexible Installation: Type A/B design supports plug-and-play with compatible ballasts or simple ballast-bypass wiring.
- Comfortable Ambience: 2700K Warm White enhances guest rooms and residential-style environments.
- Wide, Even Output: 120° beam spread helps reduce shadows in sconces and ceiling fixtures.
- Low Maintenance: 50,000-hour rated life minimizes relamping cycles and service calls.
- Right Fit: GX23 2-pin base and compact PL form factor suit common CFL fixtures.
APPLICATIONS:
- Hospitality corridors and guest rooms.
- Commercial hallways and wall sconces.
- Multi-family ceiling cans and utility areas.
- Usage Tip: Verify ballast compatibility for Type A use, or bypass the ballast for direct 120–277V operation.
SPECIFICATIONS:
- Wattage: 5.5W
- Lumens: 500
- Color Temperature: 2700K
- CRI: 80
- Voltage: 120V-277V
- Base Type: GX23 (2-Pin)
- Shape: PL
- Beam Spread: 120°
- Dimmable: No
- Ballast Type: Type A/B
- Operating Temperature: -20C (-4F) to +45C (+113F)
- MOL: 5.98"
- MOD: 1.26"
- Finish: Frost
- Housing Color: White
- Technology: LED
- Hours Rated: 50,000
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: cULus Listed for Type A; cULus Classified for Type B
- Location Rating: Damp
- RoHS Compliant: Yes
- California Status: Lawful for sale
- Energy Star: No
- Warranty: 5-Year Limited (10 hr/day)
