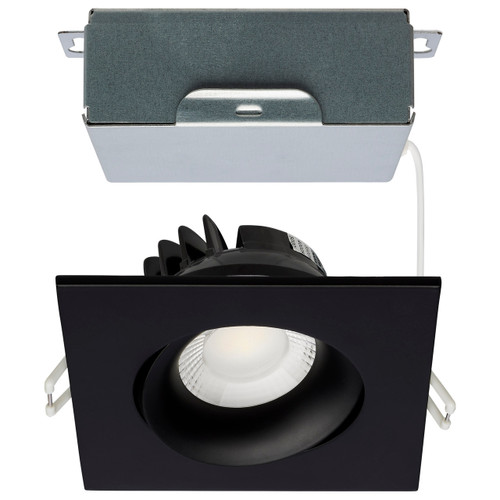

CCT Selectable Square Gimbal Downlight With Remote Driver For Wet Locations And Adjustable Aim | 12W Integrated LED
Purpose-built for retrofit and new‑construction applications, this compact square gimbal downlight provides precise, glare‑controlled illumination while reducing energy and maintenance needs. Its remote driver and integrated LED deliver 840 lumens from just 12W, with selectable color temperatures to match any space.
KEY FEATURES:
- Precision Aiming: 360° rotation and 30° tilt let you target accent or task areas without repositioning the housing.
- Flexible Color Control: Selectable color temperatures (2700K/3000K/3500K/4000K/5000K) for consistent ambiance across spaces.
- High-Quality Light: 90+ CRI ensures accurate color rendering for retail, hospitality, and display lighting.
- Reliable Performance: Remote driver and built‑in 1.5KV surge protection maintain stable output and extend fixture life.
- Wet‑Location Rated: Suitable for covered outdoor and damp indoor areas, expanding installation options.
- Long Lifetime & Warranty: 50,000 hours rated life with a 5‑year limited warranty for lower maintenance costs.
APPLICATIONS:
- Ideal for recessed or surface downlighting in bathrooms, canopies, and covered outdoor soffits.
- Great for retail aisles, hospitality corridors, and accenting displays with adjustable aim.
- Well suited for retrofit of older recessed fixtures where wet‑location performance is needed.
- Tip: Use compatible forward/reverse phase or TRIAC dimmers for smooth dimming performance.
SPECIFICATIONS:
- Wattage: 12W
- Lumens: 840L
- Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K (CCT Selectable)
- CRI: 90+
- Beam Angle: 40°
- Rated Life: 50,000 hours
- Dimmable: Yes - Forward Phase or Reverse Phase or Phase Selectable or Triac
- Voltage: 120v
- Power Factor: >0.9
- Total Harmonic Distortion: <30%
- Operating Temperature: -20°C (-4°F) to +45°C (+113°F)
- Finish: Black
- Shape: Square
- Lamp Type / Base: Integrated LED
- Surge Protection: Built‑in 1.5KV
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cETLus - Listed
- Location Rating: Suitable For Wet Locations
- California Compliance: California T24 Listed; JA8 Listed; Lawful For Sale In California
- Other Compliance: ROHS Compliant; FCC Compliant; IC Rated; Title 20 Exempt
