Description

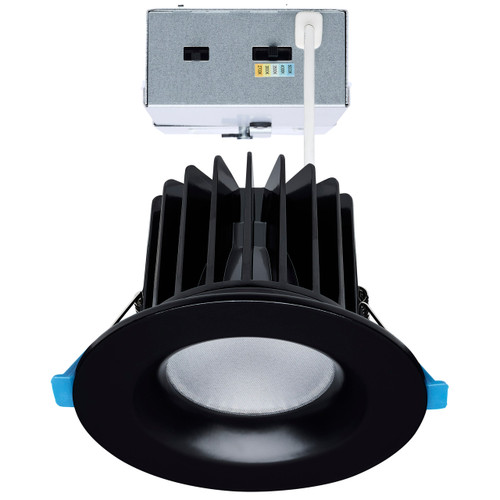

Compact 3-Inch LED Remote-Driver Downlight For Indoor Wet Locations | Switchable Warm White To Daylight | Dual Dimming, 16-24W
Designed for fast wet-location retrofits and new construction, this Satco downlight with a remote driver delivers selectable color temperatures and multiple wattage options to simplify inventory and provide flexible, energy-saving illumination for bathrooms, corridors, and commercial interiors.
KEY FEATURES:
- Field-Selectable CCT: Choose from 2700K, 3000K, 3500K, 4000K, or 5000K to match any interior application.
- True Wattage Selectable: Set the fixture to 16W, 20W, or 24W for lumen and energy flexibility.
- Dual Dimming: Phase-Cut and 0-10V dimming options provide smooth, versatile control.
- High Quality Light: 90+ CRI for accurate color rendition with lumen outputs of 1300/1600/2000 lm.
- Robust Design: Integrated surge protection (2kV), >0.9 power factor, and a remote driver for reduced ceiling plenum heat.
APPLICATIONS:
- Ideal for indoor wet locations such as bathrooms and covered wash areas.
- Well-suited for commercial corridors, retail ceilings, and office retrofit projects.
- Perfect for remodels and new construction using standard 3" cans.
- Installation Tip: Select desired wattage and CCT before final ceiling finishes and pair with compatible 0-10V controls for best dimming performance.
SPECIFICATIONS:
- Wattage: 16W / 20W / 24W
- Lumens: 1300 lm / 1600 lm / 2000 lm
- Color Temperature (CCT): 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: 90+
- Hours Rated: 50,000
- Beam Angle: 40°
- Voltage: 120V-277V
- Power Factor: >0.9
- Dimming: Dual Dimming - Phase-Cut and 0-10V
- Can Size: 3 in.
- Mounting Diameter: 3.62 in.
- Finish: Black
- Shape / Lamp: Round / Integrated LED
- Surge Protection: Built-in 2KV
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cETLus - Listed
- Energy Star: Energy Star Certified
- Location Rating: Wet
- IC Rated: True
- Air Tight: True
- FCC Compliant: True
- RoHS Compliant: Yes
- California: Lawful For Sale In California; JA8 Listed; T24 Compliant
