Description

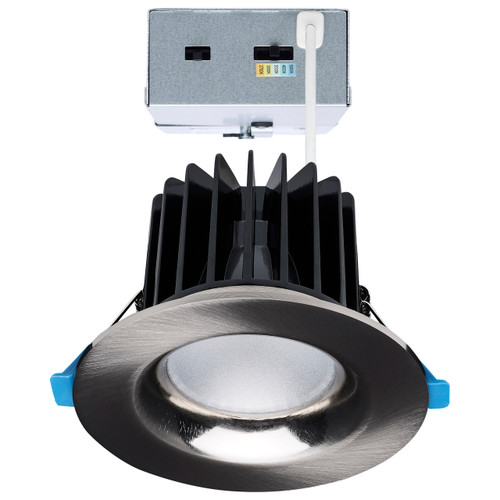

3in LED Downlight With Field-Selectable Color Tones And Dual Dimming For Offices, Retail, And Hospitality | Daylight 5000K
Specifically designed for commercial retrofit and new-construction ceilings, this compact 3in LED downlight provides versatile, high-quality illumination with field-selectable color temperatures and dual dimming modes to simplify installations and reduce maintenance across offices, retail spaces, and hospitality areas.
KEY FEATURES:
- Field-Selectable CCT: Choose 2700K, 3000K, 3500K, 4000K, or 5000K on-site to match existing lighting.
- Selectable Wattage & Output: True selectable wattages of 16W, 20W, or 24W producing 1300, 1600, or 2000 lumens respectively.
- Dual Dimming: Compatible with Phase-Cut and 0-10V controls for flexible dimming integration.
- High Color Quality: CRI 90+ for accurate color rendering in commercial environments.
- Durable, Wet-Rated Design: Wet location rated with a brushed nickel finish and integrated surge protection (2KV).
APPLICATIONS:
- Ideal for office workspaces, corridors, and retail displays requiring consistent, high-CRI lighting.
- Well-suited for hospitality areas and common areas where selectable color tones improve ambiance.
- Useful in multi-zone facilities to match color temperature across different zones without changing fixtures.
- Usage Tip: Set CCT and wattage during installation to align with adjacent fixtures and optimize energy use.
SPECIFICATIONS:
- Wattage: 16W / 20W / 24W (Selectable True Wattage)
- Lumens: 1300L / 1600L / 2000L
- Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K (Field Selectable)
- CRI: 90+
- Beam Angle: 40°
- Rated Life: 50,000 hours
- Voltage: 120V-277V
- Power Factor: >0.9
- Total Harmonic Distortion: <20%
- Dimming Type: Phase-Cut and 0-10V (Dual Dimming)
- Operating Temperature: -20°C to +40°C
- Fixture Shape / Size: Round, 3 in. Can Size, Diameter 5.2 in.
- Finish: Brushed Nickel
- Integrated Lamp: Yes (Integrated LED)
- Incandescent Equivalent: 125W
- Surge Protection: Built-in 2KV
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cETLus Listed
- Energy Star: Certified (ID 3999681)
- California Compliance: JA8 Listed; T24 Compliant; Lawful For Sale In California
- Other Compliance: FCC Compliant, IC Rated, RoHS Compliant
- Warranty: 5-Years
