Description

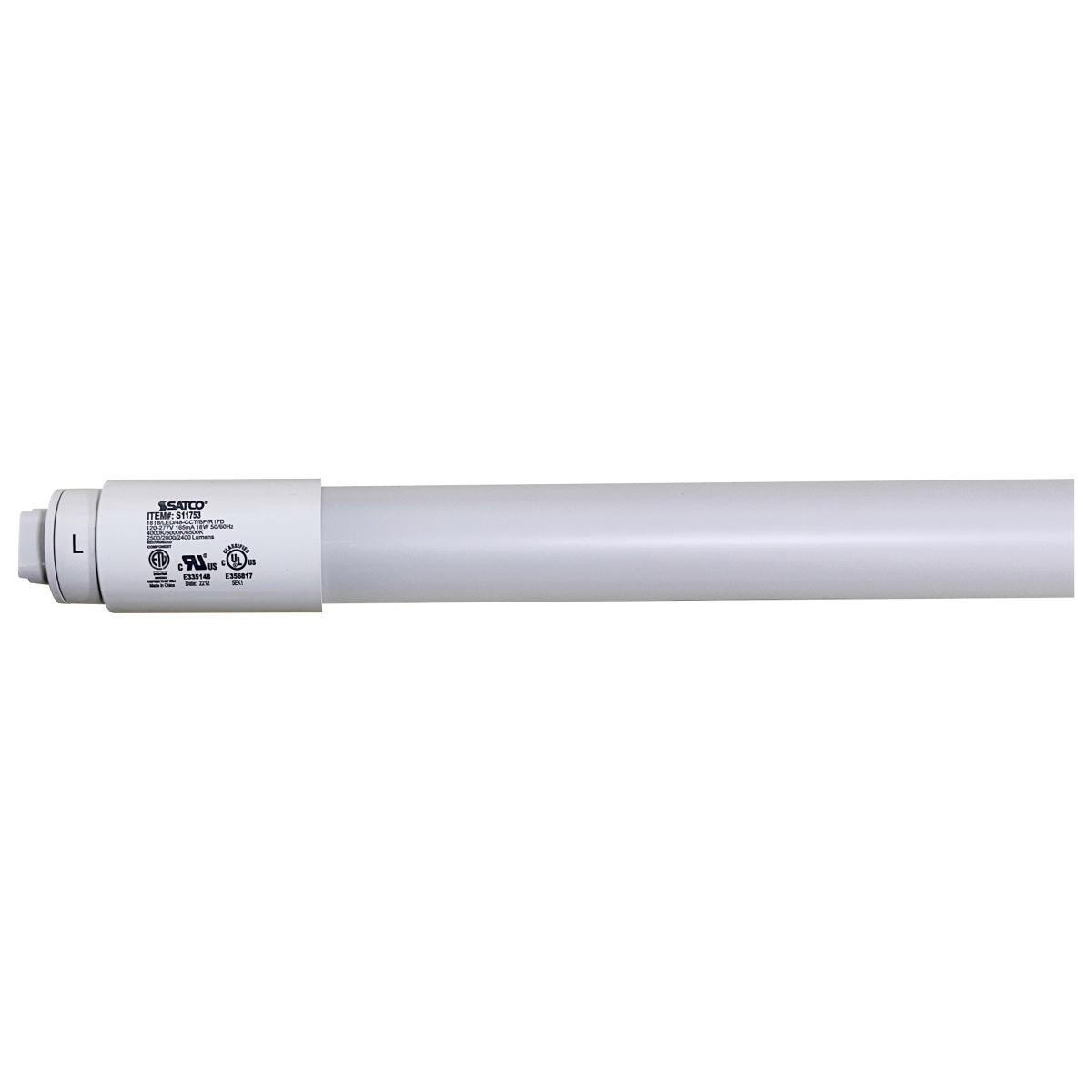

18T8/LED/48-CCT/BP/R17D 4-Foot T8 LED With RDC Base | CCT Selectable | Ballast Bypass Type B Retrofit For HO/VHO Fixtures
Upgrade HO/VHO linear fixtures quickly with this R17d (RDC) LED tube that eliminates ballast failures for reliable performance. Choose from three white tones at installation to match tasks and spaces, while the frosted lens and 180° distribution deliver smooth, glare-free illumination.
KEY FEATURES:
- Selectable Light: Choose 4000K, 5000K, or 6500K to tailor visual comfort and clarity.
- Maintenance Saver: Direct-wire Type B design removes ballast hassles and future replacement costs.
- RDC Compatibility: R17d base fits existing HO/VHO lampholders for a straightforward retrofit.
- Durable & Safe: PET-coated, enclosed-fixture rated construction enhances safety and longevity.
- Efficient Output: Uses only 18W while delivering up to 2600 lumens for bright, even coverage.
APPLICATIONS:
- Warehouses and distribution centers
- Parking garages and covered walkways
- Industrial production and back-of-house areas
- Usage Tip: Bypass the ballast and wire line voltage to lampholders; set desired CCT before closing the fixture.
SPECIFICATIONS:
- Wattage: 18W
- Lumens: 2500 / 2600 / 2400
- Color Temperature: 4000K / 5000K / 6500K
- CRI: 83
- Voltage: 120V–277V
- Operation: Ballast Bypass (Type B)
- Base Type: R17d (Recessed Double Contact)
- Shape: T8 Linear
- Beam Angle: 180°
- Nominal Length: 48"
- MOL: 46"
- Power Factor: 0.9
- THD: <25%
- Operating Temperature: -20°C (-4°F) to +45°C (+113°F)
- Material: Glass / Plastic
- Lens Finish: Frost
- Lens Material: Glass
- Shatter-Proof Type: PET Coated
- Enclosed Fixture Rated: Yes
- Dimmable: No
- Hours Rated: 50,000
- Location Rating: Damp
- Safety Listings: cRUus Recognized Component; ETLus Listed; cULus Classified
- Compliance: RoHS Compliant; California Title 20/24 Lawful; CA T20/T24 Exempt (Base Not Regulated)
- Energy Programs: Energy Star: No; DLC Approved: No
- Regulatory: FCC Compliant; NSF Approved
- Warranty: 5-Year Limited
