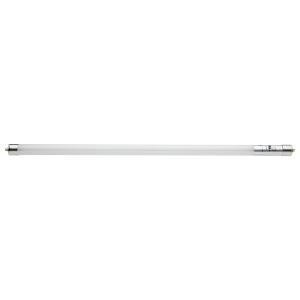

7W/LED/T5/830/BP Type B T5 LED Tube Replacement | Soft White | Double-Ended Wiring For Easy Bypass Retrofits
Make quick work of T5 upgrades with this ballast-bypass lamp that wires directly to 120–277V using double-ended connections. It replaces F13T5/WW fluorescents, delivers comfortable Soft White illumination, and cuts maintenance with long-life LED performance.
KEY FEATURES:
- Fast Retrofit: Direct-wire, double-ended design installs quickly with no external driver or ballast.
- Comfortable Output: Soft White 3000K light supports inviting, glare-free task areas.
- Wide Input Range: Operates on 120–277V for versatile commercial or residential use.
- Durable Build: PET-coated, shatter-resistant glass and rated for enclosed fixtures.
- Low Maintenance: 50,000-hour life and 0.9 power factor for dependable operation.
APPLICATIONS:
- Under-cabinet lighting in offices and workstations.
- Display cases and retail shelving.
- Task lighting for lab benches or service counters.
- Usage Tip: Rewire fixtures for double-ended line voltage before energizing.
SPECIFICATIONS:
- Wattage: 7W
- Fluorescent Equivalent: 13W
- Voltage: 120–277V
- Operation: Type B (ballast bypass); no ballast or external driver required
- Wiring: Double-ended
- Base: Miniature Bi Pin (ANSI G5)
- Shape: T5 Linear
- Nominal Length: 21"
- MOL: 20.91"
- MOD: 0.83"
- Material: Glass; PET coated (shatter-proof type)
- Finish/Lens: Frost
- Lumens: 700
- Beam Angle: 240°
- Color Temperature: 3000K (Warm White)
- CRI: 82
- Dimmable: No
- Rated Life: 50,000 hours
- Operating Frequency: 50/60Hz
- Power Factor: 0.9
- Operating Temperature: -25°C (-13°F) to +45°C (+113°F)
- Rated For Enclosed Fixture: Yes
- Location Rating: Damp
- Replacement: Replaces F13T5/WW lamps
- Weight: 0.13 lb.
- Warranty: 5 Year Limited - T5 LED Bulbs - Ballast Bypass
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: cULus Classified; cULus Certified; ETLus - SANITATION RECOGNIZED COMPONENT
- Compliance: RoHS Compliant; FCC Compliant; NSF Approved
- Energy Star: No
- California Status: Lawful for sale; Title 20/24: Lawful for sale; CA T20/T24 Rationale: Exempt - Base Not Regulated
