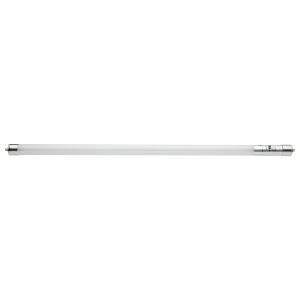

7W/LED/T5/865/BP Type B 21-Inch T5 LED Replacement Tube | Bright Daylight | Double-Ended Bypass Wiring
Modernize legacy T5 fixtures with a quick, ballast-bypass upgrade. Satco S11909 installs using double-ended line voltage for a fast retrofit that eliminates ballast failures, reduces maintenance, and delivers crisp Bright Daylight illumination for task-focused spaces.
KEY FEATURES:
- Quick Installation: Double-ended wiring uses existing lampholders for a fast, no-ballast retrofit.
- Direct Wire: 120–277V operation with no external driver or ballast required.
- Shatter-Resistant: PET-coated glass helps protect work areas and product displays.
- High Visibility: Bright Daylight output enhances clarity in detailed tasks.
- Low Maintenance: 50,000-hour life minimizes relamping and downtime.
APPLICATIONS:
- Undercabinet fixtures in offices and education spaces.
- Retail display cases and showcases.
- Task lighting for benches and workstations.
- Usage Tip: Remove or bypass the ballast and wire for double-ended line voltage.
SPECIFICATIONS:
- Wattage: 7W
- Fluorescent Equivalent: 13W
- Voltage: 120V–277V
- Ballast Type: Type B (Ballast Bypass)
- Base: Miniature Bi Pin (G5)
- Shape: T5
- Nominal Length: 21
- MOL: 20.91
- MOD: 0.83
- Finish: Frost
- Lens Finish: Frost
- Color Temperature: 6500K
- Color: Daylight
- CRI: 82
- Lumens: 700
- Beam Spread: 240°
- Dimmable: Non-Dimmable
- Hours Rated: 50,000
- Lamp Type: Linear
- Technology: LED
- Operating Frequency: 50/60 Hz
- Power Factor: 0.9
- Operating Temperature: -25C (-13F) to a maximum of +45C (+113F)
- Material: Glass
- Weight: 0.13 lb
- Shatter-Proof Type: PET Coated
- Installation Notes: Direct wire 120-277V line voltage; Double ended wiring
- Replacement: Replaces F13T5/D lamps
- Warranty: 5 Year Limited - T5 LED Bulbs - Ballast Bypass
- Safety Listing: cULus Classified
- Location Rating: Damp
- Energy Star: No
- California Status: Lawful for sale
- RoHS Compliant: Yes
- FCC Compliant: Yes
- NSF Approved: Yes
