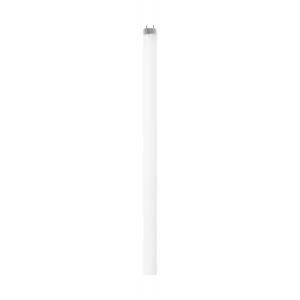

12T8/LED/48-840/XD High-Efficiency 48-Inch T8 LED Tube | Cool White | External-Driver Type C Retrofit | Dimmable Performance
Upgrade legacy fluorescents with a dedicated Type C system that delivers reliable, dimmable performance. The Satco S11940 provides comfortable Cool White illumination, reduces energy use compared to 32W T8 lamps, and minimizes maintenance with a long 50,000-hour rated life.
KEY FEATURES:
- Type C Advantage: External driver design ensures consistent output and superior control.
- Energy Savings: 12W LED replaces 32W fluorescent for lower operating costs.
- Comfortable Light: Cool White 4000K and 82 CRI support clear, productive workspaces.
- Wide Distribution: Frosted lens with a 220° beam provides even, low-glare illumination.
- Rebate Ready: DLC listed to help qualify for utility incentives.
APPLICATIONS:
- Offices and commercial corridors
- Schools and educational facilities
- Healthcare and laboratory spaces
- Tip: Use only with the specified external driver; not for emergency lighting circuits.
SPECIFICATIONS:
- Wattage: 12W
- Fluorescent Equivalent: 32W
- Lumens: 1,800
- Color Temperature: 4000K
- CRI: 82
- Beam Angle: 220°
- Dimmable: Yes
- Lamp Type: Linear
- Technology: LED
- Shape: T8
- Operation: Type C (external driver)
- Base: Medium Bi-Pin (G13)
- Lens Finish: Frost
- Length (MOL): 48 in
- Diameter (MOD): 1 in
- Operating Frequency: 50/60 Hz
- Power Factor: 0.9
- Operating Temperature: -20°C (-4°F) to +45°C (+113°F)
- Weight: 0.44 lb
- Rated Life: 50,000 hours
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cULus Classified
- Location Rating: Damp
- DLC Approved: Yes (DLC ID: PLR2T3SDBRJX)
- Sanitation: ETL Sanitation listed (conforms to NSF)
- Compliance: RoHS Compliant; FCC Compliant; California Lawful for Sale
- Energy Star: No
- Tube Guard Use: Approved
- Not For: Emergency lighting
- Warranty: 5-year limited
