Description

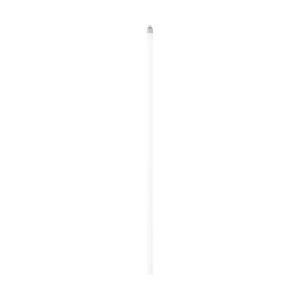

23T5/LED/48-835/XD High-Output 48-Inch T5 LED Retrofit Tube | Cool White | Type C External Driver For Fluorescent Replacements
Upgrade legacy T5 fluorescent fixtures with a reliable, energy-saving LED solution. This 23W Type C lamp pairs with an external driver to replace aging ballasts, delivering consistent 3500K illumination, smooth dimming, and reduced maintenance in commercial ceilings and troffers.
KEY FEATURES:
- Seamless Retrofit: External driver replaces the ballast for dependable performance and easier maintenance.
- Comfortable Light: 3500K neutral white supports visual comfort in task and ambient applications.
- Adjustable Output: Dimmable design enables light-level tuning to match the space.
- Uniform Coverage: Wide 220° beam and frosted lens deliver even, glare-reduced illumination.
- Energy Savings: 3400 lumens at only 23W helps cut operating costs versus fluorescent.
APPLICATIONS:
- Offices and open workspaces
- Schools and educational facilities
- Retail ceiling grid troffers
- Usage Tip: Use with a compatible external driver and remove or bypass existing ballasts.
SPECIFICATIONS:
- Wattage: 23W
- Lumens: 3400
- Color Temperature: 3500K
- CRI: 82
- Beam Spread: 220°
- Dimmable: Yes
- Lamp Type: Linear LED
- Shape: T5
- Base: Miniature Bi Pin (G5)
- Nominal Length: 48"
- Diameter (MOD): 0.63"
- Lens Finish: Frost
- Operating Frequency: 50/60 Hz
- Power Factor: 0.9
- Operating Temperature: -20C (-4F) to +45C (+113F)
- Ballasting Requirements: Ballast replaced with external driver (Type C)
- Hours Rated: 50,000
- Safety Listing: cULus Classified
- Location Rating: Damp
- DLC Approved: Yes (DLC ID: PLQCYU7LBNEU)
- California Status: Lawful for sale
- RoHS Compliant: Yes
- FCC Compliant: Yes
- NSF Approved: ETL Sanitation listed (conforms to NSF)
- Warranty: 5 Year Limited (3 hr per day)
- Weight: 0.31 lb
