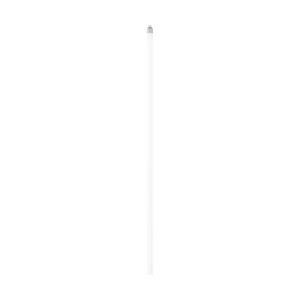

23T5/LED/48-850/XD High-Output 48-Inch T5 LED Tube Replacement | Daylight | External Driver Type C Retrofit
Upgrade legacy T5 fluorescent systems with a reliable, energy-saving LED solution. This Type C lamp pairs with an external driver to deliver consistent Daylight illumination, smooth controllability, and long service life—reducing maintenance while improving light quality in commercial spaces.
KEY FEATURES:
- Type C System: Uses an external driver for optimized performance and controllability.
- Easy Retrofit: 48-inch T5 form factor with G5 base fits existing linear fixtures after ballast removal.
- Bright, Even Light: 3400 lumens with a wide 220° distribution for uniform coverage.
- Dimmable: Adjust light levels to suit tasks and save energy.
- Long Life: 50,000-hour rating minimizes maintenance cycles.
- Rebate Ready: DLC approved to help qualify for utility incentives.
APPLICATIONS:
- Offices and commercial ceiling grids
- Educational facilities and classrooms
- Healthcare and clinical spaces
- Usage Tip: Remove the ballast and pair with a compatible external Type C driver.
SPECIFICATIONS:
- Wattage: 23W
- Lumens: 3400
- Color Temperature: 5000K
- CRI: 82
- Beam Spread: 220°
- Dimmable: Yes
- Lamp Type: Linear
- Shape: T5
- Base: Miniature Bi Pin
- ANSI Base: G5
- Nominal Length: 48"
- MOL: 48"
- MOD: 0.63"
- Finish: Frost
- Lens Finish: Frost
- Operating Frequency: 50/60 Hz
- Power Factor: 0.9
- Operating Temperature: -20C (-4F) to +45C (+113F)
- Ballast Type: Type C (External Driver)
- Hours Rated: 50,000
- Weight: 0.31 lb.
- Location Rating: Damp
- Safety Listing: cULus Classified
- DLC Approved: Yes (DLC ID: PLSYLZ6C510S)
- California Status: Lawful for sale
- RoHS Compliant: Yes
- FCC Compliant: Yes
- NSF: ETL Sanitation listed (conforms to NSF)
- Warranty: 5 Year Limited - 3 hr per day
