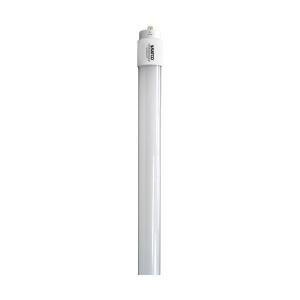

24T8/LED/96-850/BP/FA8 High-Output 8-Foot LED T8 Retrofit Tube | Daylight | Type B Direct-Wire | FA8 Single-Pin Base
Upgrade long runs of 8-foot fluorescents with a dependable LED solution that reduces maintenance and simplifies installation. This Type B, direct-wire T8 replaces ballast-dependent lamps to eliminate common failure points while delivering clean, daylight illumination for safer, more productive spaces.
KEY FEATURES:
- Fast Retrofit: Direct-wire Type B design removes the ballast for fewer failures and lower upkeep.
- Wide, Even Light: 210° distribution enhances aisle and task visibility.
- Durable Build: PET-coated glass provides shatter resistance for safer installs.
- Exact Fit: FA8 single-pin base matches 8-foot fixtures for an easy swap.
- Versatile Placement: Enclosed-fixture and damp-location rated for more applications.
- Rebate Friendly: DLC listed to help qualify for energy incentives.
- Emergency Ready: Compatible with Satco EM Driver #S8002 for egress applications.
APPLICATIONS:
- Warehouses and distribution centers
- Retail aisles and back-of-house corridors
- Parking garages and covered loading areas
- Usage Tip: Bypass the fluorescent ballast and wire line voltage to FA8 sockets only.
SPECIFICATIONS:
- Wattage: 24W
- Lumens: 3500
- Color Temperature: 5000K
- CRI: 82
- Beam Spread: 210°
- Voltage: 120V–277V
- Operation: Type B (Ballast Bypass), Direct Wire
- Base: FA8 (Single Pin)
- Shape: T8 Linear
- Nominal Length: 96"
- MOL: 94.00"
- Material: Glass
- Lens Finish: White
- Shatter-Proof Type: PET Coated
- Power Factor: 0.9
- THD: 20%
- Operating Frequency: 50/60Hz
- Operating Temperature: -20°C (-4°F) to +45°C (+113°F)
- Location Rating: Damp
- Rated For Enclosed Fixture: Yes
- Hours Rated: 50,000
- DLC Approved: Yes (DLC ID: PLD2OH5KIHQF)
- Safety Listings: cULus Classified; cULus Certified; cRUus Recognized Component
- Compliance: RoHS Compliant; FCC Compliant; NSF Approved
- Warranty: 5-Year Limited (T8 LED Bulbs - Ballast Bypass)
- Additional Note: Suitable for emergency lighting only with Satco EM Driver #S8002
