Description

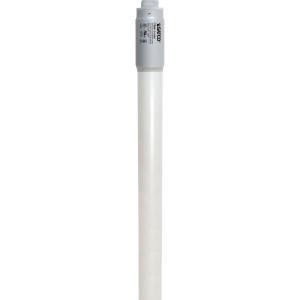

30T8/LED/72-840/BP/R17D/HO High-Output 72-Inch Linear LED Retrofit Lamp | Cool White | Type B Ballast Bypass | R17d HO Base
Upgrade 6-foot fixtures quickly with a dependable, maintenance-reducing retrofit. This high-output LED tube replaces legacy HO fluorescent lamps, eliminates ballast failures with direct line-voltage wiring, and delivers uniform Cool White illumination through a frosted glass lens for comfortable, glare-controlled light.
KEY FEATURES:
- Simplified Retrofit: Ballast-bypass wiring removes failure-prone ballasts and reduces future service calls.
- Wide, Even Coverage: 160° beam spreads consistent light across long runs and large fixtures.
- Durable Construction: Frosted glass lens with shatter-proof type supports safer installations and tube guard use.
- Reliable In Real-World Conditions: Operates from -20°C to +45°C and is rated for damp locations.
- Consistent Visual Comfort: Cool White color enhances visibility in task-oriented spaces.
APPLICATIONS:
- Warehouses and distribution aisles
- Retail aisles and back-of-house areas
- Parking garages and utility corridors
- Usage Tip: Verify R17d sockets and complete line-voltage wiring per manufacturer instructions.
SPECIFICATIONS:
- Wattage: 30W
- Lumens: 4200
- Color Temperature: 4000K (Cool White)
- CRI: 82
- Beam Spread: 160°
- Voltage: 120V-277V
- Ballast Type: Type B
- Ballasting Requirements: Ballast Bypass
- Operating Frequency: 50/60 Hz
- Power Factor: 0.9
- THD: 25%
- Operating Temperature: -20°C (-4°F) to +45°C (+113°F)
- Shape: T8
- Lamp Type: Linear
- Technology: LED
- Base: R17d (Recessed Double Contact)
- Finish: Frost
- Lens Material: Glass
- Lens Finish: Frost
- Material: Glass
- Housing Color: White
- Nominal Length: 72 in
- MOL: 70 in
- Weight: 1.01 lb
- Dimmable: Non-Dimmable
- Hours Rated: 50,000
- Location Rating: Damp
- Shatter-Proof Type: Yes
- Tube Guard Use: Yes
- Safety Listing: cULus
- NSF Approved: Yes
- RoHS Compliant: Yes
- FCC Compliant: Yes
- Energy Star: No
- California Status: Lawful for sale
- Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass
