Description

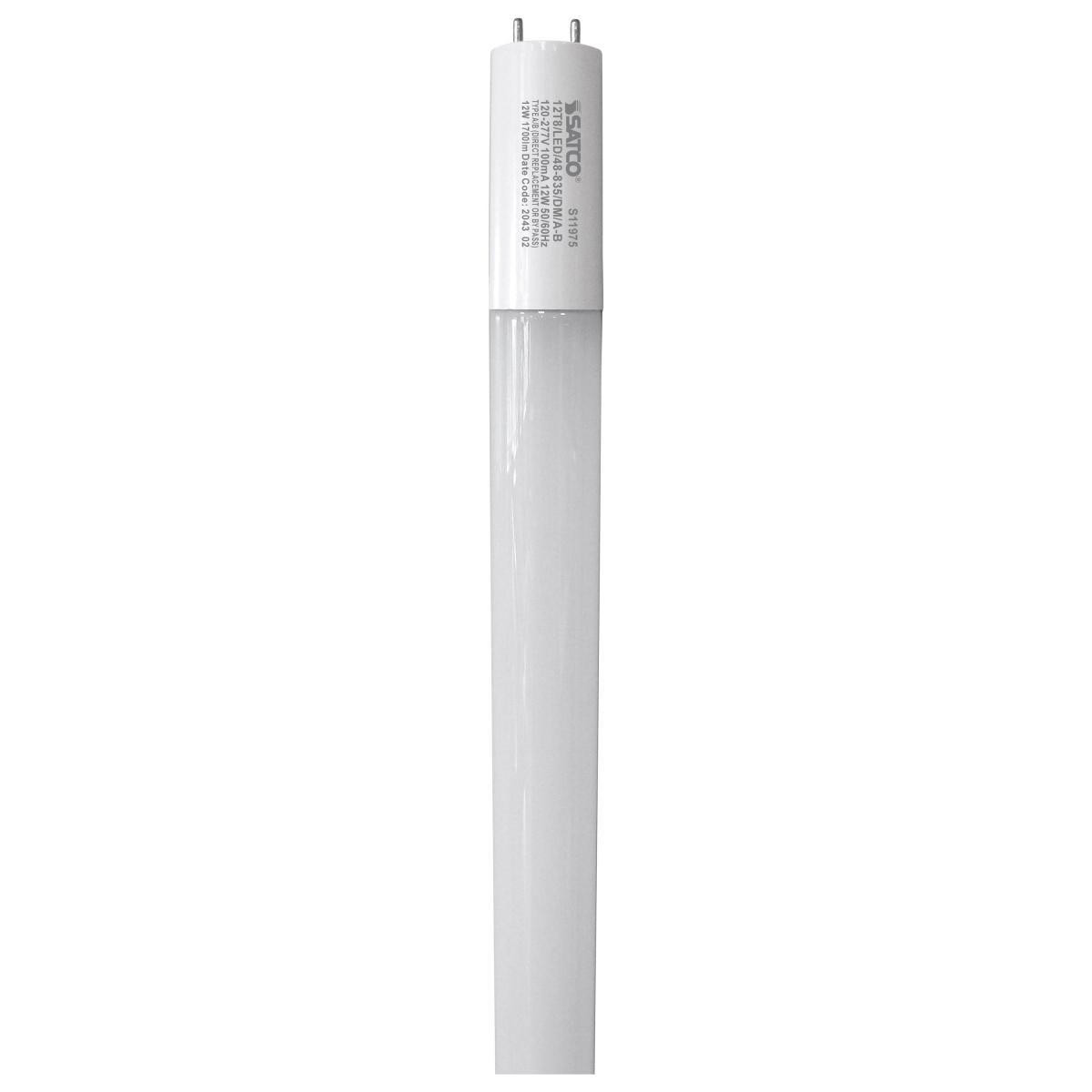

12T8/LED/48-835/DM/A-B Hybrid 4-Foot T8 LED Replacement | Type A/B Ballast Compatible Or Bypass | Enclosed Fixture Rated
Upgrade existing 4-foot fluorescent troffers without rewiring hassles: this hybrid LED T8 operates on compatible ballasts or direct line voltage, delivering dependable 3500K illumination and reducing maintenance with a long 50,000-hour rated life.
KEY FEATURES:
- Hybrid Flexibility: Works as Type A plug-and-play or Type B ballast bypass for fast, low-disruption retrofits.
- Consistent Light Quality: Neutral 3500K output with 1700 lumens and a wide 210° beam for uniform coverage.
- Uniform Distribution: Glass construction with a frosted lens minimizes glare and hotspots.
- Versatile Use: Rated for enclosed fixtures and suitable for damp locations.
- Reliable Performance: 0.9 power factor with 50/60Hz operation supports stable, efficient lighting.
APPLICATIONS:
- Offices and commercial troffers
- Schools and educational facilities
- Retail aisles and back rooms
- Usage tip: Use with existing T8 ballasts (Type A) or bypass to line voltage (Type B) per installation guidelines.
SPECIFICATIONS:
- Wattage: 12W
- Fluorescent Equivalent: 32W
- Voltage: 120V–277V
- Operation: Type A/B (Ballast Plug-and-Play or Bypass)
- Shape: T8
- Base: Medium Bi Pin (G13)
- Finish: Frost
- Color Temperature: 3500K
- CRI: 82
- Lumens: 1700
- Beam Spread: 210°
- Rated Life: 50,000 hours
- Operating Frequency: 50/60Hz
- Power Factor: 0.9
- THD: 20%
- Operating Temperature: -20°C (-4°F) to +45°C (+113°F)
- MOL: 48.00 in
- MOD: 1.00 in
- Lens Material: Glass
- Housing Color: White
- Weight: 0.49 lb
- Enclosed Fixture Rated: Yes
- Location Rating: Damp
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Listed
- DLC Approved: Yes (DLC ID: S-K5IXGD)
- California Status: Lawful for sale; Title 20/24 status lawful
- Compliance: RoHS Compliant; FCC Compliant; NSF Approved
- Warranty: 5-year limited
