Description

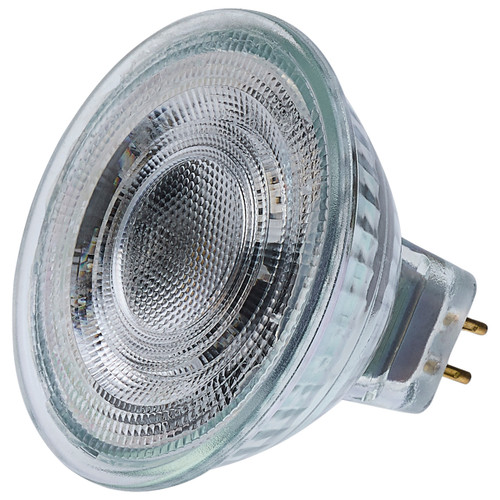

Compact Low-Glare MR16 Bi-Pin LED Spotlight For Track, Retail, And Display Lighting | Cool White 4000K Dimmable Accent
Compact and efficient, the Satco S12363 MR16 LED replaces 50W halogen lamps with a low-voltage LED solution that reduces energy use and maintenance while delivering crisp, high-CRI accent lighting ideal for retail displays, track runs, and gallery exhibits.
KEY FEATURES:
- Low Power: 5.5W LED output producing 500 lumens to replace traditional 50W halogen MR16 lamps.
- High Color Quality: CRI 90+ ensures accurate color rendering for merchandise and artwork.
- Consistent Color: Cool White 4000K delivers neutral, glare-controlled accent illumination.
- Dimmable: Compatible with Forward Phase, Reverse Phase, Phase Selectable, and Triac dimming; check transformer/driver compatibility.
- Retrofit Friendly: MR16 form factor with GU5.3 bi-pin base for easy installation in existing low-voltage fixtures.
- Long Life & Warranty: Rated 25,000 hours with a 5-Year warranty for reduced maintenance.
- Durable Design: Polycarbonate lens, built-in 0.5 kV surge protection, and power factor 0.7.
APPLICATIONS:
- Ideal for retail merchandising, display cases, and track lighting in shops and galleries.
- Well suited for residential accent and task lighting in kitchens, living spaces, and home galleries.
- Great for hospitality and museum showcases requiring high-CRI accent illumination.
- Usage Tip: Use a compatible low-voltage LED dimmer and verify transformer compatibility to ensure flicker-free dimming.
SPECIFICATIONS:
- Wattage: 5.5W
- Lumens: 500L
- Incandescent Equivalent: 50W
- Color Temperature: Cool White 4000K
- CRI: 90+
- Beam Angle: 15°
- Base Type: GU5.3 (Bi-Pin)
- Voltage: 12V
- Dimmable: Yes
- Dimming Type: Forward Phase or Reverse Phase or Phase Selectable or Triac
- Hours Rated: 25,000
- Power Factor: 0.7
- Total Harmonic Distortion: 50%
- Surge Protection: Built-in surge protection - 0.5KV
- Lens Material: Polycarbonate (PC)
- Lensed: True
- MOD (Diameter): 1.97
- MOL (Length): 1.73
- Operating Temperature: -25C (-13F) to +45C (+113F)
- Location Rating: Indoor, Damp
- IP Rating: IP20
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cULus - Listed
- RoHS Compliant: Yes
- FCC Compliant: True
- California Compliance: Lawful for sale in California
- Warranty: 5-Years
