Description

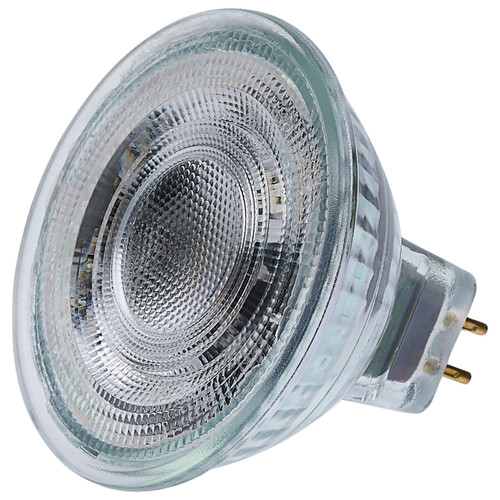

Low-Voltage MR16 LED Flood Replacement | Cool White 4000K | 36° Beam, CRI 90+ Phase-Selectable Dimming For Accent & Track
Upgrade low-voltage accent and display fixtures with a compact MR16 lamp that delivers bright, high‑quality light while cutting energy and maintenance. The Satco S12368 produces 500 lumens from just 5.5W and fits existing bi‑pin low‑voltage sockets for fast, tool‑free retrofits.
KEY FEATURES:
- High Color Fidelity: CRI 90+ improves color rendering for retail, galleries, and hospitality environments.
- Energy Saving: 5.5W LED output replaces 50W halogen equivalents to reduce energy use and lamp changes.
- Easy Retrofit: Compact MR16 form factor with GU5.3 bi‑pin base installs in existing 12V fixtures.
- Phase‑Selectable Dimming: Works with forward or reverse phase (Triac) dimmers; check transformer compatibility before installation.
- Controlled Beam: 36° medium flood with clear polycarbonate lens for focused accent illumination.
- Durable & Protected: Built‑in 0.5KV surge protection and rated for enclosed fixtures.
- Long Life: 25,000 hour rating and a 5‑year limited warranty reduce maintenance cycles.
APPLICATIONS:
- Ideal for retail displays and showcase lighting where accurate color is critical.
- Perfect for accent and track lighting in restaurants, galleries, and residential settings.
- Well suited for enclosed fixtures and damp locations specified for indoor use.
- Installation Tip: Use with compatible 12V transformers and verify dimmer/driver compatibility for smooth dimming.
SPECIFICATIONS:
- Wattage: 5.5W
- Lumens: 500L
- Beam Angle (degree): 36
- Color Temperature: 4000K (Cool White)
- CRI: 90+
- Voltage: 12V
- Power Factor: 0.7
- Lamp Base: GU5.3
- Lamp Type: MR16
- Hours Rated: 25,000
- Dimmable: Yes-Dimmable
- Dimming Type: Forward Phase or Reverse Phase or Phase Selectable or Triac
- Lens Material: Polycarbonate (PC)
- Lens Finish: Clear
- Finish Family: Clear
- Material: Glass
- Warranty: 5-Years
- Rated For Enclosed Fixture: True
- Operating Temp: -25C (-13F) to +45C (+113F)
- IP Rating: IP20
- Location Rating: Damp
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus - Listed
- RoHS Compliant: Yes
- FCC Compliant: True
- DLC Approved: False
- Title 20: Yes
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.
