Description
High Efficiency ED17 LED Replacement Lamp | Cool White 4000K Wet Location Retrofit With Ballast Bypass And 50,000 Hour Life

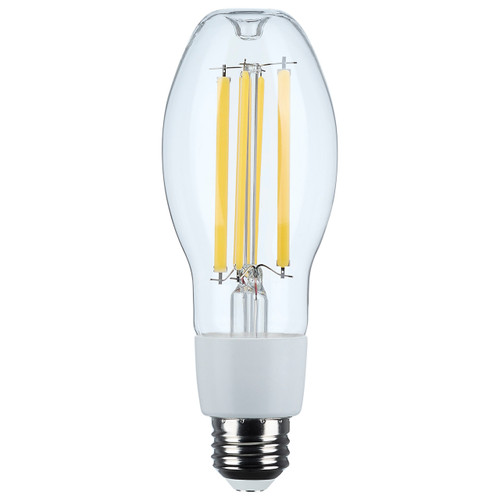

Delivering energy savings and low maintenance for commercial and outdoor fixtures, the Satco S13181 replaces 50W HID lamps with a compact 13.5W ED17 LED. Rated for wet locations with IP65 protection and a 50,000-hour life, this medium-base retrofit offers instant-on performance and built-in surge protection to keep exterior and high-ceiling installations running reliably.
KEY FEATURES:
- Direct Retrofit: ED17 form factor with E26 (Medium) base for quick replacement of 50W HID lamps without fixture modification.
- Energy Savings: 13.5W LED delivers 2000 lumens, cutting energy use compared to legacy HID sources while maintaining bright, cool-white light.
- Wet-Location Ready: IP65 rated housing and built-in 4kV surge protection support exterior and damp-area installations.
- Long Life & Reliability: 50,000-hour rated life with a 5-year limited warranty and cULus safety listings.
- Ballast Bypass: Designed for Type B (ballast bypass) installations for safe direct-line operation on 120–277V.
APPLICATIONS:
- Ideal for parking garages, canopies, and exterior wall fixtures requiring wet-location rated lamps.
- Well suited for warehouses and utility fixtures replacing small HID lamps with efficient LED output.
- Common choice for security and perimeter lighting where instant-on performance is needed.
- Usage Tip: Bypass existing ballast per instructions and confirm fixture is not vapor-tight before installing.
SPECIFICATIONS:
- Wattage: 13.5W
- Lumens: 2000L
- Color Temperature: 4000K (Cool White)
- CRI: 80+
- Hours Rated: 50,000
- Voltage: 120V-277V
- Base Type: E26 (Medium)
- Shape: ED17
- Beam Angle: 320°
- Dimmable: No
- HID Equivalent: 50W
- Ballast Requirement: Ballast Bypass (Type B)
- IP Rating: IP65 (Wet Location)
- Operating Temperature: -30°C to +65°C (-22°F to +149°F)
- Rated For Enclosed Fixture: True
- Finish: Clear
- Surge Protection: Built-in 4kV
- Warranty: 5-Years
- Installation Notes: Not for use in vapor tight fixtures.
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: cULus Certified
- FCC: Compliant
- RoHS: Compliant
- California Title 20 / CA Regulations: Non-Compliant (CRI <82)
