ED17 LED Retrofit For HID Fixtures With Indoor/Outdoor Wet Location Rating | Daylight 5000K For Security Lighting

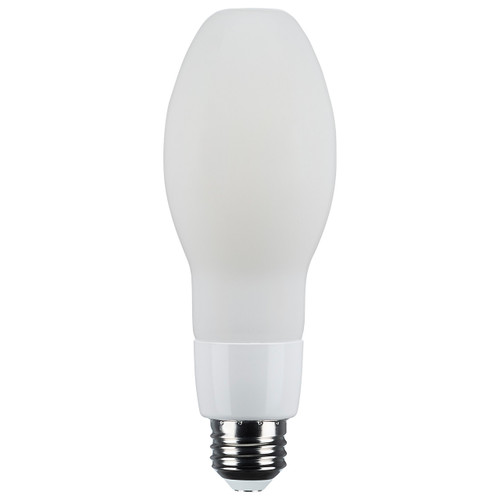

Designed to replace aging HID lamps in outdoor and industrial fixtures, the Satco S13182 ED17 LED delivers Daylight illumination with low power draw and long life, reducing maintenance needs for security, utility, and perimeter lighting.
KEY FEATURES:
- Low Power Consumption: 15W LED replaces 70W HID equivalents while providing 2,000 lumens.
- Reliable Outdoor Use: IP65 wet-location rating with built-in 4KV surge protection for exposed installations.
- Fixture Compatibility: ED17 form factor with Medium (E26) base for simple screw-in retrofit.
- Long Life: Rated for 50,000 hours to reduce maintenance cycles.
- Robust Performance: Operates 120-277V with a 0.9 power factor and -30°C to +65°C operating range.
- Safety & Warranty: cULus listings and a 5-year limited warranty; not for use in vapor-tight fixtures.
- Light Quality: Daylight color (5000K) with 80+ CRI and a wide 320° beam angle.
- Dimming: Non-dimmable
APPLICATIONS:
- Ideal for security lighting, building exteriors, and utility area retrofits.
- Well-suited for warehouses and outdoor canopies requiring bright, uniform light.
- Common replacement for HID fixtures in parking areas and service yards.
- Installation Tip: Bypass existing ballasts where required and install as a ballast-bypass lamp; do not use in vapor-tight housings.
SPECIFICATIONS:
- Wattage: 15W
- Lumens: 2,000L
- HID Equivalent: 70W
- Color Temperature: 5000K
- CRI: 80+
- Voltage: 120-277V
- Base Type: Medium (E26)
- Shape: ED17
- Beam Angle: 320°
- Hours Rated: 50,000
- Dimmable: No
- Operating Temp: -30°C to +65°C
- IP Rating: IP65 (Wet Location)
- Power Factor: 0.9
- Surge Protection: Built-in 4KV
- Warranty: 5-Year Limited
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: cULus Certified / Classified / Listed
- Location Rating: Suitable for wet locations; not for vapor-tight fixtures
