Description
ED28 LED Retrofit Lamp For Commercial Fixtures | Cool White 4000K With Extended Mogul Socket Compatibility And IP65 Wet Rating

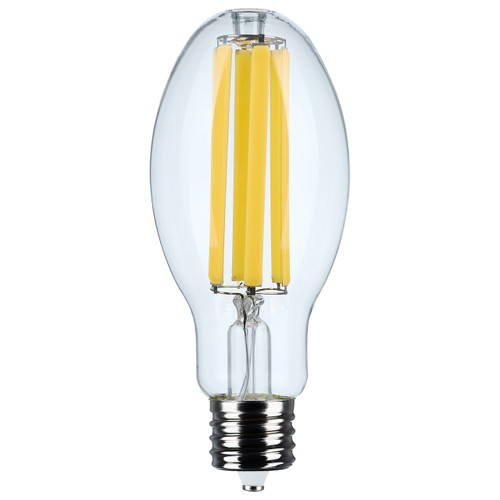

Designed to replace 150W HID lamps with minimal downtime, the Satco S13187 ED28 LED lamp delivers bright, maintenance‑saving Cool White illumination while cutting energy use. Its universal 120–277V driver, IP65 wet rating, and extended mogul compatibility make it a durable retrofit solution for outdoor and industrial fixtures.
KEY FEATURES:
- High Output: Produces 5,000 lumens from a 28W LED package to replace 150W HID fixtures with significantly lower energy use.
- Wide Voltage Range: Universal 120V–277V operation simplifies retrofits across building circuits and reduces stocking SKUs.
- Rugged Outdoor Ready: IP65 wet-location rating plus built-in 4kV surge protection for reliable performance in exposed environments.
- Long Life & Low Maintenance: Rated for 50,000 hours to reduce re-lamping and maintenance costs.
- Mogul Socket Compatible: EX39 extended mogul base fits existing mogul fixtures for fast lamp swaps.
APPLICATIONS:
- Ideal for parking garages, street and area lighting, and industrial high-bay fixtures.
- Well suited for canopies, utility fixtures, and retrofit projects where wet-location durability is required.
- Use in indoor or outdoor commercial fixtures seeking a direct HID-to-LED replacement.
- Installation Tip: Do not install in vapor‑tight fixtures; ensure proper socket and enclosure compatibility.
SPECIFICATIONS:
- Wattage: 28W
- Lumens: 5,000L
- Color Temperature: Cool White 4000K
- CRI: 80+
- Voltage: 120V-277V
- Base Type: EX39 (Mogul)
- Lamp Type / Shape: ED28
- Hours Rated: 50,000
- Beam Angle: 320°
- Power Factor: 0.9
- Surge Protection: Built-in 4KV
- Operating Temp: -30°C (-22°F) to +65°C (+149°F)
- HID Equivalent: 150W
- Dimmable: No
- IP Rating: IP65
- Rated For Enclosed Fixtures: True
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Certified / Listed
- Location Rating: Wet
- DLC Status: DLC Approved
- Warranty: 5-Years
- Installation Notes: Not for use in vapor tight fixtures.
