Description
High-Lumen LED Retrofit For 150W HID Fixtures | Cool White 4000K | IP65 Wet-Location Rated With 50,000-Hour Life

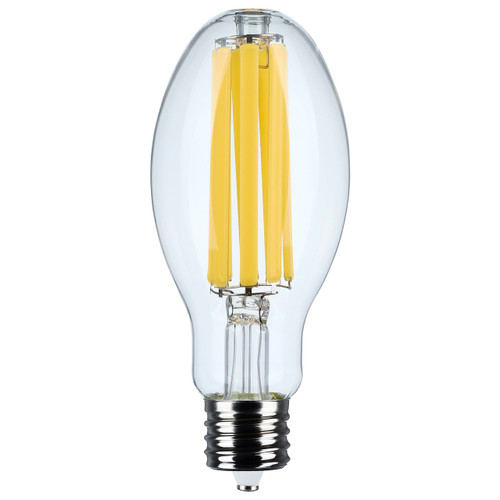

Replace aging 150W HID lamps with the Satco S13189 to cut energy use and maintenance while maintaining high output. This clear ED28 LED delivers 6,000 lumens from a 34W package, fits extended mogul sockets, and is IP65 wet-location rated for reliable indoor and outdoor performance.
KEY FEATURES:
- Energy Savings: Consumes 34W while replacing 150W HID fixtures for lower operating costs.
- High Output: 6,000 lumens with a wide 320° beam for broad area illumination.
- Durable Design: Glass ED28 lamp with built-in 4kV surge protection for harsh environments.
- Wet-Location Ready: IP65 rating allows use in outdoor and damp locations.
- Long Service Life: Rated for 50,000 hours with a 5-year warranty for reduced relamp frequency.
- Simple Retrofit: Extended mogul (EX39) base for direct replacement of mogul HID lamps.
APPLICATIONS:
- Ideal for outdoor area and site lighting retrofit applications.
- Well suited for parking lot, perimeter, and security lighting where wet-rating is required.
- Use to upgrade pole-mounted, wall-mounted, or enclosed HID fixtures seeking energy savings.
- Installation Tip: Verify fixture compartment dimensions and EX39 socket compatibility before installation.
SPECIFICATIONS:
- Wattage: 34W
- Lumens: 6,000
- Color Temperature: Cool White 4000K
- CRI: 80+
- HID Equivalent: 150W
- Beam Angle: 320°
- Voltage: 120V-277V
- Base Type: Mogul Extended (EX39)
- Lamp Shape: ED28
- MOL: 8.4 in
- Operating Position: Universal
- Operating Temperature: -30°C (-22°F) to +65°C (+149°F)
- Power Factor: 0.9
- Dimmable: No (Non-Dimmable)
- Rated Life: 50,000 hours
- Finish: Clear
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus Listed / Certified
- DLC: Approved
- Location Rating: IP65 Wet-Location Rated; Suitable For Indoor And Outdoor Use
- Warranty: 5-Year Limited Warranty
- Installation Notes: Not for use in vapor-tight fixtures; Rated for enclosed fixtures
- Additional: Built-in 4kV surge protection
