Description
50W/70W/100W HID Replacement - 3,100/3,700/4,500 lm - Wattage and CCT Selectable - Type B Ballast Bypass

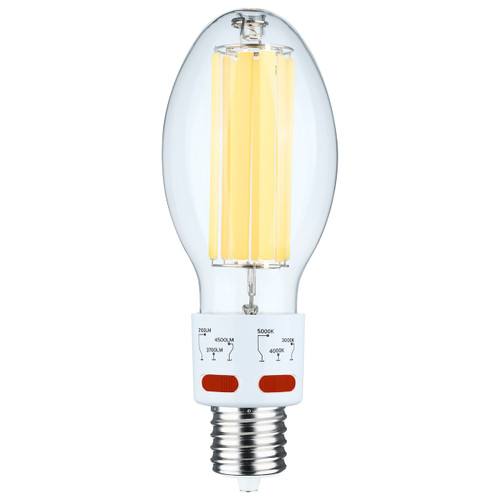

The Satco S13195 is a wattage-selectable ED28 LED clear filament bulb rated to replace compatible 50W/70W/100W HID lamps from an EX39 Mogul Extended base. View other high lumen LED bulbs to find the right replacement wattage, base and operation type for your fixture.
Product Specifications
- Brand: Satco
- Manufacturer Model: 25W/LED/HID/ED28/CCT/EX39/CL
- Actual LED Wattage: Selectable 17W/21W/25W
- HID Replacement: 50W/70W/100W
- Lumen Output: 3,100/3,700/4,500 lm
- Color Temperature: CCT Selectable (3000K/4000K/5000K)
- Base: EX39 Mogul Extended
- Operation Type: Type B | Ballast Bypass (direct-wire line voltage)
- Voltage: 120-277V
- CRI: 80
- Dimmable: Yes
- Bulb Shape: ED28
- Rated Life: 50,000 hours
- Warranty: 5 Years
Benefits
- Field-selectable wattage reduces the number of replacement SKUs to stock
- Selectable color temperature lets one lamp cover multiple installations
- Retains the existing fixture housing when replacing compatible 50W/70W/100W HID lamps
- Type B ballast-bypass operation removes the existing ballast from the circuit
Applications
- Parking lots, exterior security, and street lighting fixtures
- Warehouses and industrial outdoor areas requiring high output and low upkeep
- Works well in retrofit projects for municipal, commercial, and facility maintenance programs
- Enclosed fixtures where the lamp is rated for enclosed use
- Wet-location fixtures per the stated rating
Downloads
Disclaimers
*This product is built to order and typically ships in 2 to 3 business days. Larger quantities may require additional processing time. All lead times are estimates, and you will be notified by email if the order is expected to take longer than 5 business days to ship.
