Description
150W/250W/320W HID Replacement - 5,850/7,400/8,750 lm - Type B Ballast Bypass - 120-277V

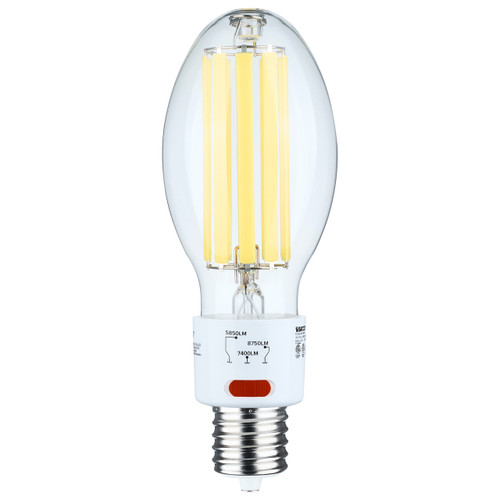

The Satco S13196 is a wattage-selectable ED28 LED clear filament bulb rated to replace compatible 150W/250W/320W HID lamps from an EX39 Mogul Extended base. See additional high-output LED bulbs by replacement wattage, lumen output, base type, voltage and operation type.
Product Specifications
- Brand: Satco
- Manufacturer Model: 45W/LED/HID/ED28/850/EX39/CL
- Actual LED Wattage: Selectable 30W/38W/45W
- HID Replacement: 150W/250W/320W
- Lumen Output: 5,850/7,400/8,750 lm
- Color Temperature: 5000K
- Base: EX39 Mogul Extended
- Operation Type: Type B | Ballast Bypass (direct-wire line voltage)
- Voltage: 120-277V
- CRI: 80
- Dimmable: Yes
- Bulb Shape: ED28
- Rated Life: 50,000 hours
- Warranty: 5 Years
Benefits
- Field-selectable wattage reduces the number of replacement SKUs to stock
- Retains the existing fixture housing when replacing compatible 150W/250W/320W HID lamps
- Type B ballast-bypass operation removes the existing ballast from the circuit
- Rated for 50,000 hours of operation
Applications
- Parking lot and streetlight retrofits replacing HID lamps in existing mogul fixtures
- Warehouses, loading docks, and industrial outdoor area lighting
- Useful for property grounds, perimeter, and utility lighting where wet-location performance is required
- Enclosed fixtures where the lamp is rated for enclosed use
- Wet-location fixtures per the stated rating
