Description

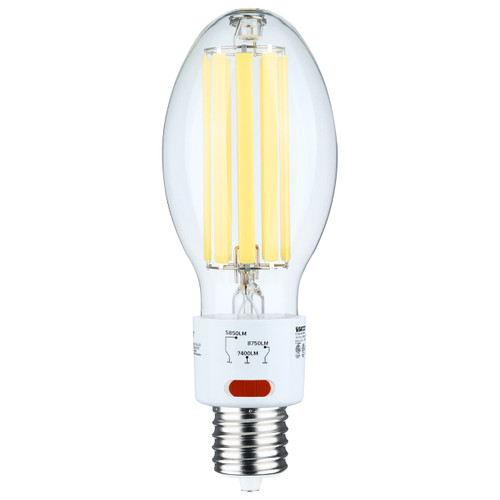

Triple-Wattage Selectable LED HID Replacement With EX39 Base | Daylight 5000K | Ballast-Bypass, Wet-Location Rated
Built to simplify HID-to-LED retrofits in exterior and utility fixtures, this Satco lamp combines three selectable wattage settings with high lumen output and long rated life to reduce maintenance and energy needs while preserving familiar mogul-socket installations.
KEY FEATURES:
- Wattage Selectable: Three-position switch for 30W, 38W, or 45W to match fixture light levels and energy goals.
- High Output: Delivers 5,850 / 7,400 / 8,750 lumens across settings to replace 150W/250W/320W HID sources.
- Direct-Wire Installation: Ballast-bypass (Type B) design for retrofit into EX39/Mogul sockets without external drivers.
- Durable Outdoor Use: Wet-location rated and suitable for enclosed fixtures; built-in 3kV surge protection for utility environments.
- Long Life & Reliable Color: 50,000-hour rated life with Daylight 5000K color and 80+ CRI for consistent, bright illumination.
APPLICATIONS:
- Ideal for parking lot and streetlight retrofits replacing HID lamps in existing mogul fixtures.
- Well suited for warehouses, loading docks, and industrial outdoor area lighting.
- Useful for property grounds, perimeter, and utility lighting where wet-location performance is required.
- Installation Tip: Bypass and remove the existing ballast and install directly into EX39/Mogul sockets per fixture wiring rules.
SPECIFICATIONS:
- Wattage: 30W / 38W / 45W (selectable)
- Lumens: 5,850 / 7,400 / 8,750
- HID Equivalent: 150W / 250W / 320W
- Color Temperature: 5000K (Daylight / Natural Light)
- CRI: 80+
- Beam Angle: 360°
- Rated Life: 50,000 hours
- Dimmable: Yes - Step dimming via onboard wattage selector
- Base Type: Mogul Extended (EX39)
- Lamp Type / Shape: ED28
- MOL: 9.92
- Power Factor: >0.9
- Total Harmonic Distortion: <20%
- Surge Protection: Built-in 3KV
- Operating Temperature: -30°C (-22°F) to +45°C (+113°F)
- Voltage: 120-277V (Direct Wire / Ballast Bypass)
- Rated For Enclosed Fixture: True
- Location Rating: Wet
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cETLus Listed
- DLC: Approved
- RoHS: Compliant
- FCC: Compliant
- California: Lawful for sale in California; CA Regulations Exempt - Base Not Regulated; Title 20 Exempt
- Installation Notes: Not for use in vapor-tight fixtures; remove/ bypass ballast per installation instructions.
