Description

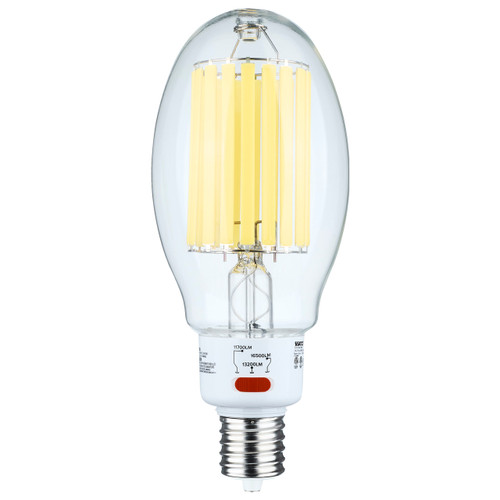

ED37 High-Output LED Retrofit For HID Fixtures | Daylight 5000K | Ideal For Warehouses, Parking, And Utility Areas
Replace high-wattage HID lamps with a versatile ED37 LED that simplifies retrofits and reduces maintenance. The Satco S13197 provides selectable 60/68/85W output, delivers high lumen packages for large-area illumination, and installs via direct-wire ballast bypass to modernize fixtures quickly.
KEY FEATURES:
- Selectable Wattage: Switch between 60W, 68W, and 85W outputs to match application needs.
- High Light Output: Up To 11,700 / 13,200 / 16,500 lumens depending on selected wattage for bright, uniform illumination.
- Direct-Wire Installation: AB ballast type with ballast bypass allows direct 120–277V line-voltage wiring; no external driver required.
- Durable Construction: ED37 glass envelope with Mogul EX39 base and built-in 4kV surge protection.
- Long Life & Performance: Rated 50,000 hours, CRI 80+, 360° beam angle, and power factor >0.9.
APPLICATIONS:
- Ideal For Warehouses And Distribution Centers.
- Suitable For Parking Lots, Garages, And Site Lighting.
- Great For Industrial Yards, Utility Areas, And Retrofit Projects.
- Installation Tip: Use In Direct-Wire Ballast-Bypass Retrofits And Avoid Vapor-Tight Fixtures.
SPECIFICATIONS:
- Wattage: 60W / 68W / 85W
- Lumens: 11,700 / 13,200 / 16,500
- Color Temperature: Daylight 5000K
- CRI: 80+
- Base Type: Mogul Extended (EX39)
- Shape: ED37
- Voltage: 120V–277V (Direct Wire)
- Rated Life: 50,000 hours
- Beam Angle: 360°
- Power Factor: >0.9
- Surge Protection: Built-In 4kV
- Operating Temp: -30°C to +45°C
- HID Equivalent: 320W / 400W / 450W
- Warranty: 5-Year
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cETLus Listed
- DLC: Approved
- Location Rating: Wet
- Installation Notes: Not For Use In Vapor Tight Fixtures; Rated For Enclosed Fixtures
