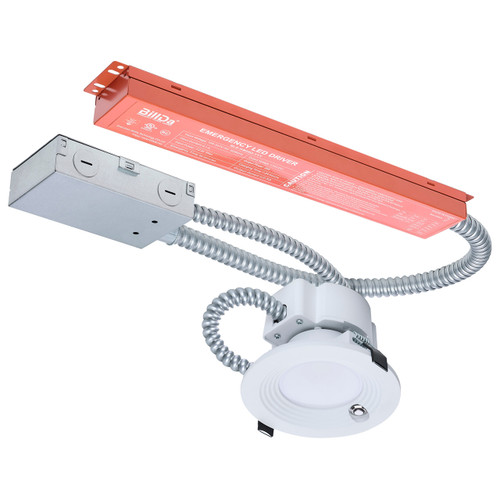

Commercial 4-Inch Recessed Downlight With Dual Dimming And Emergency Driver | CCT Selectable, Ideal For Offices And Retail
Engineered for commercial retrofit and new-construction ceilings, the Satco S21604 4-inch field-selectable downlight delivers flexible color tuning, dependable emergency backup, and efficient LED performance to reduce maintenance and improve occupant comfort.
KEY FEATURES:
- Field-Selectable CCT: Choose from 2700K, 3000K, 3500K, 4000K, or 5000K to match space needs or retrofit requirements.
- Selectable Wattage & Output: Configurable wattages (14.6W / 13.6W / 12.4W) with corresponding lumen outputs (1200 / 1000 / 800) for tailored energy use.
- Dual Dimming: Phase cut at 120V and 0-10V dimming across 120-347V for broad control compatibility.
- Integrated Emergency Driver: Built-in emergency with 90-minute battery runtime for code-compliant egress lighting.
- Long Life & High Quality Light: Rated for 50,000 hours with CRI 90+ for accurate color rendering in commercial spaces.
APPLICATIONS:
- Ideal for office open-plan areas and private offices seeking low-glare, high-CRI illumination.
- Well-suited for retail aisles and display zones where selectable color temperature optimizes merchandise appearance.
- Appropriate for healthcare and education spaces requiring reliable emergency backup and quality light.
- Installation Tip: Use existing 4" cutouts for quick retrofit; set desired CCT and wattage before final commissioning.
SPECIFICATIONS:
- Wattage: 14.6W / 13.6W / 12.4W
- Lumens: 1200 / 1000 / 800
- Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: 90+
- Beam Angle: 85°
- Hours Rated: 50,000
- Voltage: 120V-347V
- Power Factor: >0.9
- Total Harmonic Distortion: <30%
- Dimming Type: Phase Cut at 120V / 0-10V at 120-347V
- Emergency Runtime: 90 Minute EM Battery Runtime
- Finish: White
- Diameter: 4.96 in
- Mounting Diameter: 4.17 in
- Lens Material: Polycarbonate (PC)
- Operating Temp: +5C (+41F) to +40C (+104F)
- Surge Protection: Built-in 2.5KV
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cETLus - Listed
- Energy Star Certified: Yes (Energy Star ID 4510057)
- Title 20 / T24: Title 20 Yes; T24 Compliant True
- Location Rating: Damp (IP Rating: IP20)
- ROHS Compliant: Yes
- FCC Compliant: True; IC Rated: True
