Description

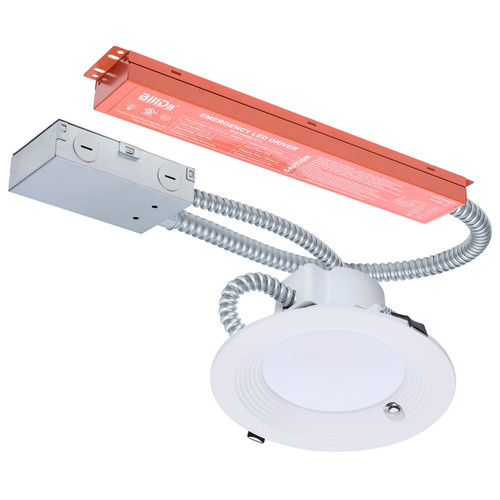

Field-Selectable 6-Inch Recessed Downlight For Commercial Lighting | CCT Selectable | Dual Dimming And Emergency Driver
Designed for commercial retrofit and new-construction interiors, the Satco S21605 delivers selectable color temperatures, wattage flexibility, and integrated emergency capability to reduce maintenance and simplify installations across offices, retail, and hospitality spaces.
KEY FEATURES:
- Field-Selectable CCT: Choose 2700K, 3000K, 3500K, 4000K, or 5000K on-site to match design intent.
- Wattage Selectable: 20.5W / 18.2W / 16.3W options for tailored energy use and output.
- Dual Dimming: Phase cut dimming at 120V and 0-10V dimming across 120-347V for flexible control.
- Integrated Emergency Driver: Built-in emergency with 90 minute battery runtime for egress and safety requirements.
- High Quality Light: 90+ CRI with lumen outputs of 2200 / 1800 / 1400 to support accurate color rendering and visual comfort.
- Robust Electrical: 120-347V operation, >0.9 power factor, <30% THD, and 2.5KV surge protection.
- Long Life: Rated 50,000 hours to minimize relamping and maintenance costs.
APPLICATIONS:
- Ideal for offices, retail storefronts, and hospitality interiors requiring reliable recessed illumination.
- Well suited for commercial retrofit projects and new ceiling installs in grid and remodel housings.
- Use in indoor corridors or lobbies where emergency runtime is required for code-compliant egress lighting.
- Installation Tip: Use 0-10V dimming for consistent dim performance across 120-347V systems.
SPECIFICATIONS:
- Wattage: 20.5W / 18.2W / 16.3W
- Lumens: 2,200 / 1,800 / 1,400
- Color Temperature: CCT Selectable (2700K, 3000K, 3500K, 4000K, 5000K)
- CRI: 90+
- Hours Rated: 50,000
- Voltage: 120V-347V
- Power Factor: >0.9
- Dimming: Phase Cut at 120V / 0-10V at 120-347V
- Beam Angle: 105°
- Finish: White
- Mounting Diameter: 6.02"
- Diameter: 7.4"
- Operating Temp: +5°C (+41°F) to +40°C (+104°F)
- Surge Protection: Built-in 2.5KV
- THD: <30%
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cETLus - Listed
- Energy Star: Yes
- Location Rating: Damp Location
