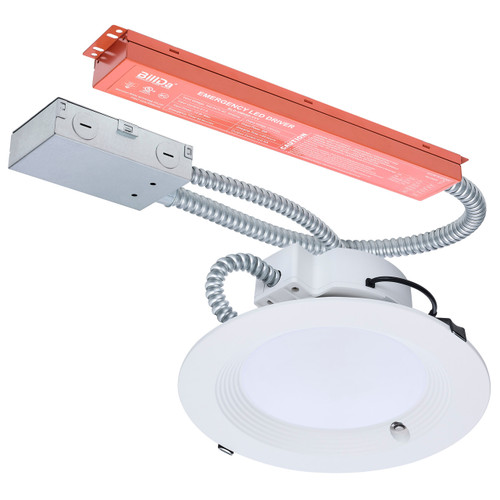

8-Inch Commercial Recessed Downlight With CCT Selectable And Integrated Emergency Driver For Offices And Retail
Deliver consistent, high-quality illumination in offices, retail spaces, and hospitality areas with this Satco 8-inch commercial downlight. Field-selectable color temperatures and wattage let installers tailor light output on site while dual-dimming compatibility and an integrated emergency driver simplify code-compliant installations and maintenance.
KEY FEATURES:
- Field-Selectable CCT: Choose from 2700K, 3000K, 3500K, 4000K, or 5000K to match the space.
- Selectable Wattage: 28W / 25W / 20W options allow balancing lumen output and energy use.
- Dual Dimming: Phase-cut dimming at 120V or 0-10V dimming at 120-347V for broad control compatibility.
- Integrated Emergency Driver: Built-in emergency functionality provides a 90-minute runtime for egress lighting.
- High Color Quality: CRI 90+ with up to 3,200 lumens for accurate color rendering and bright general illumination.
- Robust Performance: 50,000-hour rated life with built-in 2.5kV surge protection and >0.9 power factor.
APPLICATIONS:
- Ideal for office ceilings and open-plan work areas seeking high-CRI, adjustable lighting.
- Well suited to retail fixtures and display zones that need accurate color rendering and selectable output.
- Great for hospitality corridors, lobbies, and plazas where integrated emergency backup is required.
- Installation Tip: Set desired CCT and wattage before finalizing ceiling placement and use compatible 0-10V or phase-cut dimmers for best performance.
SPECIFICATIONS:
- Wattage: 28W / 25W / 20W
- Lumens: 3200 / 2900 / 2200
- Beam Angle: 100°
- Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: 90+
- Rated Life: 50,000 hours
- Voltage: 120-347V
- Dimming Type: Dual Dimming (Phase-Cut at 120V / 0-10V at 120-347V)
- Emergency Runtime: 90 minutes
- Finish: White
- Diameter: 9.76 in
- Mounting Diameter: 7.99 in
- IP Rating: IP20
- Location Rating: Damp
- Warranty: 5-Year
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cETLus Listed
- Energy Star: Yes (ID 4510061)
- CA Compliance: Title 20, T24 Compliant, JA8 Listed
- Other: Air Tight True; Built-In 2.5kV Surge Protection
