Description

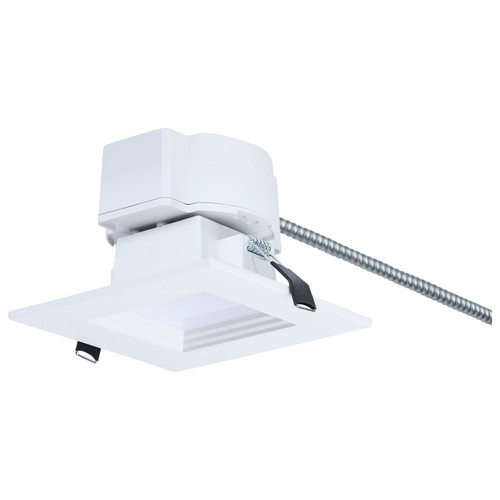

4-Inch Commercial Recessed Downlight With Dual Dimming And High CRI 90+ For Damp Location Installations
Designed for fast commercial retrofits, this 4-inch recessed downlight delivers selectable light levels and superior color rendering to modernize office, retail, and hospitality ceilings while reducing maintenance and energy use.
KEY FEATURES:
- Field-Selectable Output: Three wattage and lumen settings let you tailor brightness on-site (13.5W/12W/10.7W; 1200/1000/800 lumens).
- Dual Dimming: Phase cut dimming at 120V and 0-10V dimming across 120-347V for broad control compatibility.
- High Color Quality: CRI 90+ ensures accurate color rendering for commercial spaces.
- Long Life: Rated for 50,000 hours to minimize replacements and service visits.
- Compact Retrofit Design: Slim 4-inch form factor and white finish for easy integration into existing housings.
APPLICATIONS:
- Ideal for office and retail ceiling retrofits where upgraded light quality is needed.
- Suitable for hospitality and corridor lighting requiring high CRI and flexible dimming.
- Great for education and healthcare common areas seeking low-maintenance illumination.
- Usage Tip: Set the desired CCT and wattage before finalizing ceiling layouts to optimize spacing and energy use.
SPECIFICATIONS:
- Wattage: 13.5W / 12W / 10.7W
- Lumens: 1200L / 1000L / 800L
- Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: 90+
- Beam Angle: 85°
- Dimming: Yes — Dual Dimming (Phase Cut at 120V; 0-10V at 120-347V)
- Hours Rated: 50,000
- Voltage: 120V-347V
- Power Factor: >0.9
- Total Harmonic Distortion: <30%
- Operating Temp: -20°C to +40°C
- Finish: White
- Material: Aluminum
- Lens Material: Polycarbonate (PC)
- IP Rating: IP20
- Location Rating: Damp
- Shape: Square
- Warranty: 5-Years
- Hours: 50,000
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cETLus - Listed
- Energy Star: Energy Star Certified (ID 4481352)
- California: T24 Compliant; Lawful For Sale In California
- Surge Protection: Built-in 2.5KV
