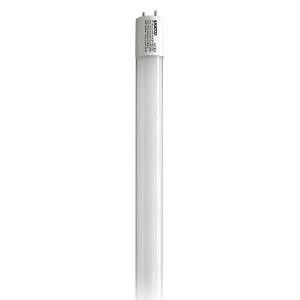

14T8/LED/48-865/BP/SE-DE Efficient 4-Foot LED T8 Retrofit Tube | Bright Daylight | Type B Bypass | Single/Double-Ended Wiring
Streamline your retrofit projects with this energy-saving 4-foot LED T8 that eliminates ballast maintenance and delivers crisp, high-visibility Bright Daylight illumination. Its robust glass construction and wide beam ensure uniform coverage, while flexible single- or double-ended wiring simplifies installation in existing fixtures.
KEY FEATURES:
- Simplified Retrofit: Type B ballast-bypass operation supports single or double-ended wiring for easy upgrades.
- High Visibility: Bright Daylight output enhances clarity in task and inspection areas.
- Low Maintenance: 50,000-hour rated life reduces relamping and service calls.
- Uniform Coverage: 210° beam angle provides even illumination with reduced shadowing.
- Rebate Ready: DLC approved for potential utility incentives.
APPLICATIONS:
- Offices and commercial troffers
- Schools, hallways, and corridors
- Retail aisles and back rooms
- Tip: Verify ballast is removed or bypassed before energizing the circuit.
SPECIFICATIONS:
- Wattage: 14W
- Lumens: 1800
- Color Temperature: 6500K (Daylight)
- CRI: 82
- Beam Angle: 210°
- Voltage: 120–277V
- Operation: Type B (Ballast Bypass); Single/Double-Ended
- Base: G13 (Medium Bi-Pin)
- Shape / Type: T8 LED
- Nominal Length: 48"
- MOL: 47.78"
- MOD (Diameter): 1.1"
- Material: Glass
- Finish / Lens: Gloss White
- Power Factor: 0.9
- THD: 20%
- Operating Frequency: 50/60Hz
- Operating Temperature: -20°C (-4°F) to +45°C (+113°F)
- Location Rating: Damp
- DLC: Approved (ID: PLCMB3ZLZZ39)
- Energy Star: No
- Weight: 0.44 lb
- Tube Guard Use: Approved
- Specification Note: Built-in shock-resistant circuit; not hot until both ends are installed.
- Warranty: 5 Year Limited (T8 LED Bulbs - Ballast Bypass)
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cULus Classified; cRUus Recognized Component
- Compliance: RoHS Compliant; FCC Compliant; NSF Approved
- California: Title 20/24 Lawful for Sale; Exempt - Base Not Regulated
