Description

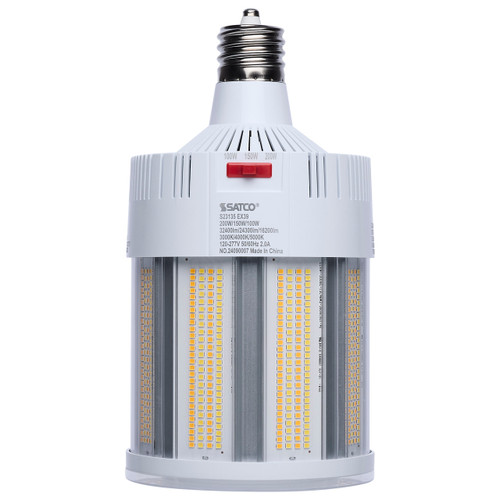

Field-Selectable Corncob LED For Outdoor Security & Retrofit With EX39 Socket | Soft White • Cool White • Daylight
Built for fast HID-to-LED retrofits, this high-output corncob lamp delivers flexible lumen and color-temperature options to modernize security, parking, and perimeter fixtures while cutting maintenance with a 50,000-hour rated life.
KEY FEATURES:
- Field-Selectable Power: Choose 200W, 150W, or 100W to match existing fixture requirements and control output.
- Adjustable Color: Select Soft White, Cool White, or Daylight CCT on the lamp for application-specific color tuning.
- Mogul Retrofit Ready: EX39/Mogul base enables simple installation into existing HID sockets.
- Robust Outdoor Performance: IP54 rating, built-in 6KV surge protection, and universal 120-277V operation for reliable outdoor use.
- High Efficiency & Long Life: Up to 50,000 hours rated life and high lumen output to reduce relamping and maintenance.
- Simple Dimming: Dimmable via the integrated wattage-selection switch for stepped dimming control.
APPLICATIONS:
- Outdoor security and perimeter lighting.
- Parking lot, canopy, and area lighting retrofit projects.
- Industrial and commercial HID replacement applications, indoor or outdoor.
- Usage Tip: Not for use in vapor-tight fixtures; suitable for enclosed fixtures per product rating.
SPECIFICATIONS:
- Wattage: 200W / 150W / 100W (Field-Selectable)
- Lumens: 33,380 / 26,081 / 18,124
- HID Equivalent: 500W
- Color Temperature: 3000K / 4000K / 5000K (Soft White / Cool White / Daylight)
- CRI: 80+
- Rated Life: 50,000 hours
- Voltage: 120V-277V
- Base Type: Mogul Extended (EX39)
- Beam Angle: 280°
- Power Factor: 0.99
- Total Harmonic Distortion: <20%
- Material: Aluminum / Polycarbonate (PC)
- Finish: White
- IP Rating: IP54
- Location Rating: Indoor and Outdoor (Damp)
- Surge Protection: Built-in 6KV
- Dimmable: Yes — via wattage selection switch (step dimming)
- Operating Temp: -40°C to +50°C
- Rated For Enclosed Fixture: True
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: cULus - Classified, cULus - Listed
- Compliance: DLC Approved, FCC Compliant, RoHS Compliant
- California: CA Regulations Exempt - Base Not Regulated; Lawful For Sale In California
