Description

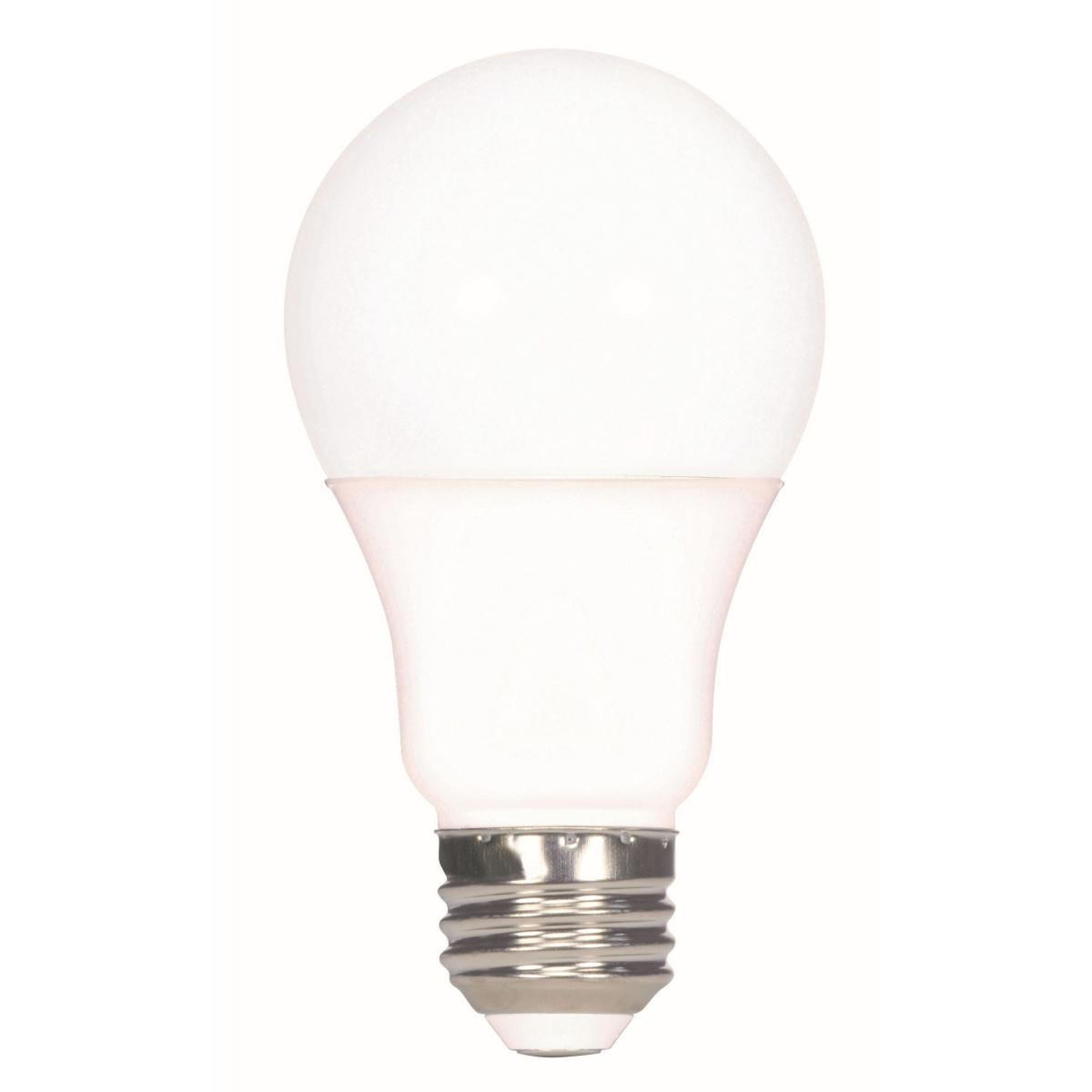

9.2A19/LED/850/12-34V/ND Rugged Low-Voltage A19 LED for RV, Boat, Landscape Lighting | Daylight | E26 Base, Enclosed Fixture Rated
Upgrade low-voltage lighting with a durable, energy-saving A19 that installs easily into standard E26 sockets. Designed for 12–34V AC/DC systems, this lamp delivers crisp Daylight illumination while reducing maintenance and operating costs. Rated for enclosed fixtures and damp locations, it’s a dependable choice for RV, marine, and off-grid applications.
KEY FEATURES:
- Low-Voltage Optimized: Works on 12–34V AC/DC systems for RVs, boats, and off-grid setups.
- Enclosed Fixture Rated: Safe for sealed housings to ensure reliable, long-life operation.
- Bright, Wide Illumination: Daylight output with a broad 220° beam for uniform coverage.
- Easy Retrofit: Medium E26 base fits standard sockets—no special adapters needed.
- Energy Saving: 800 lumens from just 9.2W replaces 60W incandescent lamps.
- Built for Real-World Conditions: Operates from -25°C (-13°F) to +45°C (+113°F) in damp locations.
APPLICATIONS:
- RVs and camper interiors needing efficient, low-voltage lighting.
- Marine cabins and protected deck fixtures on AC/DC systems.
- Low-voltage landscape housings with E26 sockets in damp locations.
- Usage tip: Do not install in 120V AC sockets; for 12–34V systems only.
SPECIFICATIONS:
- Wattage: 9.2W
- Lumens: 800
- Color Temperature: 5000K
- CRI: 80
- Voltage: 12V-24V AC / 12V-34V DC
- Base: Medium (E26)
- Shape: A19
- Beam Spread: 220°
- Dimmable: No
- Incandescent Equivalent: 60W
- Hours Rated: 25,000
- Power Factor: 1
- Operating Temperature: -25°C (-13°F) to +45°C (+113°F)
- Finish: White
- Weight: 0.1058 lb
- Rated For Enclosed Fixture: Yes
- Location Rating: Damp
- Lamp Type: Type A
- MOL: 4.33
- MOD: 2.36
- Safety Listing: Not Listed
- Energy Star: No
- California Status: Non-Compliant
- RoHS Compliant: Yes
