Description

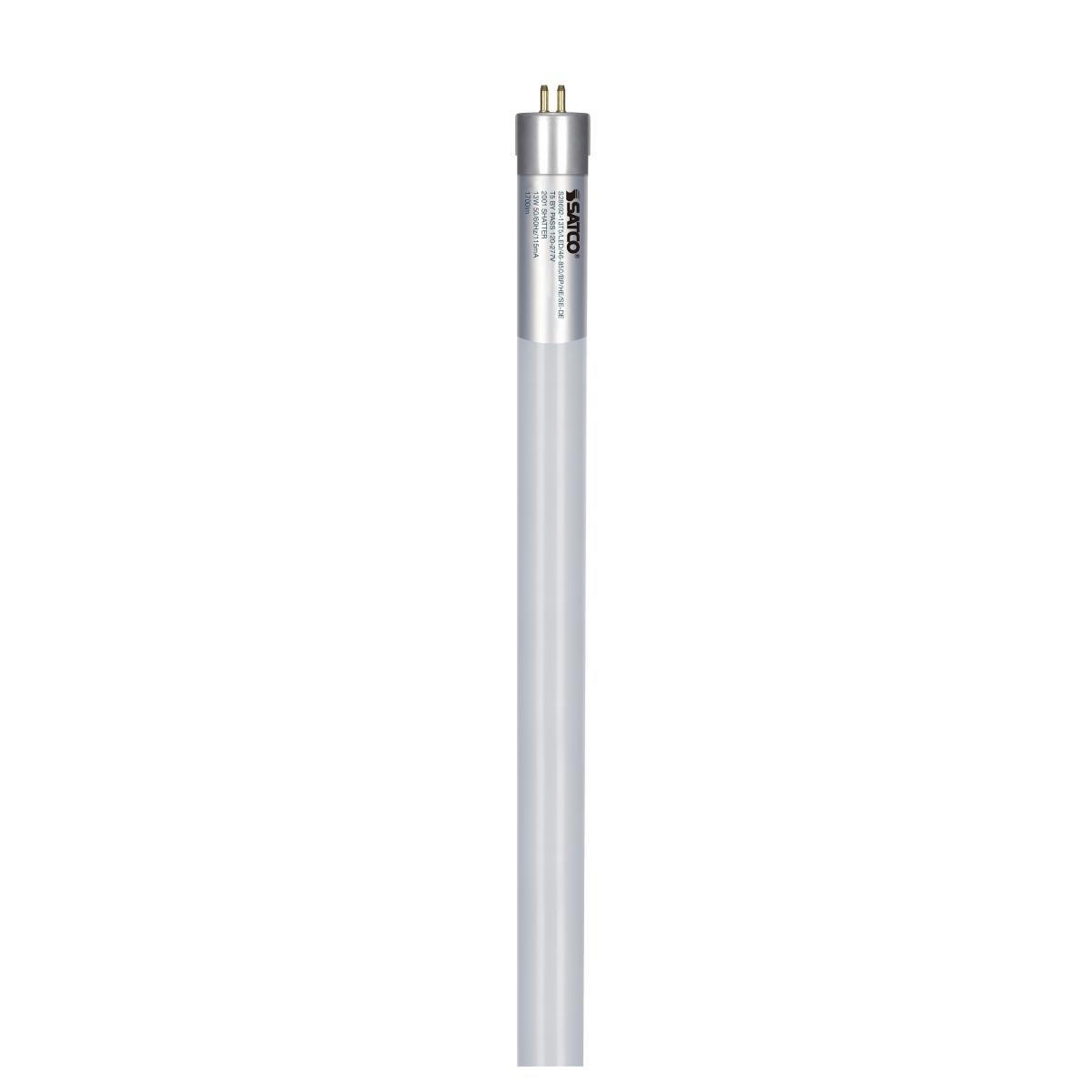

13T5/LED/46-850/BP/HE/SE-DE Efficient 4-Foot LED T5 Replacement | Daylight | Type B Bypass, Single- or Double-Ended Wiring
Upgrade legacy T5 fluorescents with a durable, energy-saving LED tube that eliminates ballast maintenance. This 4-foot, frost-finished glass lamp delivers bright, uniform Daylight output with a wide 240° beam, installs via ballast bypass for reliable performance, and is PET-coated for added safety in demanding environments.
KEY FEATURES:
- Simplified Maintenance: Type B ballast bypass removes a common failure point for long-term reliability.
- Bright, Clean Light: 5000K Daylight and 1700 lumens for crisp visibility in work areas.
- Versatile Wiring: Supports single- or double-ended connections for flexible retrofits.
- Safety Focused: PET shatter-proof coating and enclosed-fixture rating enhance protection.
- Wide Coverage: 240° beam angle ensures even illumination with minimal shadowing.
APPLICATIONS:
- Office corridors, classrooms, and administrative areas.
- Retail aisles, stockrooms, and back-of-house spaces.
- Healthcare and hospitality common areas.
- Usage Tip: Bypass and remove or clearly label inactive ballasts during installation.
SPECIFICATIONS:
- Wattage: 13W
- Lumens: 1700L
- Color Temperature: 5000K
- CRI: 83
- Voltage: 120V-277V
- Operation: Type B (Ballast Bypass)
- Base: G5 Miniature Bi Pin (ANSI G5)
- Shape: T5 Linear
- Nominal Length: 48"
- MOL: 46"
- Beam Spread: 240°
- Material: Glass
- Lens Finish: Frost
- Shatter-Proof Type: PET Coated
- Operating Frequency: 50/60Hz
- Power Factor: 0.9
- THD: 20%
- Operating Temperature: -25C (-13F) to +45C (+113F)
- Location Rating: Damp
- Rated For Enclosed Fixture: Yes
- Rated Life: 50,000 hours
- DLC Approved: Yes (DLC ID: PLJ1EPDXDBTD)
- Warranty: 5 Year Limited
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: cULus Classified; cULus Certified; ETLus Sanitation Recognized Component
- NSF Approved: Yes
- RoHS Compliant: Yes
- FCC Compliant: Yes
- California Title 20/24 Status: Lawful for sale
