Description

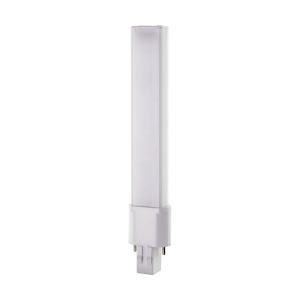

6W/LED/CFL/835/GX23/BP/G2 Compact PL LED Replacement Lamp | GX23 2-Pin Base | Direct-Wire Type B Retrofit For CFL Sockets
Streamline your CFL upgrades with this direct-wire LED PL lamp. Designed for ballast bypass installations, it delivers consistent neutral light, reduces maintenance with long life, and supports a wide 120–277V range for easy standardization across facilities.
KEY FEATURES:
- Fast Retrofit: Type B direct-wire design eliminates ballast failures and headaches.
- Versatile Placement: Universal burning position works in multiple fixture orientations.
- Comfortable Output: Frosted finish helps reduce glare and distribute light evenly.
- Wide Compatibility: Operates on 120–277V to simplify multi-site deployments.
- Low Maintenance: 50,000-hour rating minimizes relamping cycles and downtime.
APPLICATIONS:
- Offices and administrative areas
- Hospitality corridors and common spaces
- Retail displays and ceiling fixtures
- Usage Tip: Bypass or remove the ballast and wire directly to line voltage per instructions.
SPECIFICATIONS:
- Wattage: 6W
- Fluorescent Equivalent: 13W
- Voltage: 120V-277V
- Ballast Type: Type B (Direct Wire)
- Lumens: 600
- Color Temperature: 3500K
- CRI: 80
- Beam Spread: 360
- Dimmable: Non-Dimmable
- Lamp Type: PL 2-Pin
- Base: GX23
- Finish: Frost
- Burning Position: Universal
- Technology: LED
- Operating Frequency: 50/60 Hz
- Power Factor: 0.9
- Operating Temperature: -25C (-13F) to +45C (+113F)
- MOL: 7.09
- MOD: 1.28
- Housing Color: White
- Weight: 0.82 lb
- Rated Life: 50,000 hours
- Safety Listing: cETLus
- Location Rating: Damp
- Energy Star: No
- California Status: Lawful for sale
- RoHS Compliant: Yes
- Warranty: 5 Year Limited (10 hr/day)
