Description

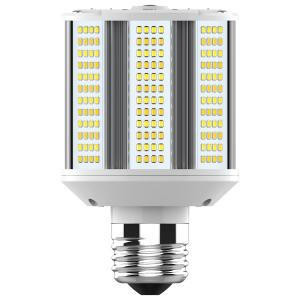

20W/LED/WP/CCT/E26/100-277V Versatile Corn Cob LED Retrofit For Wall Packs And Area Lights | CCT Selectable | E26 Medium Base
Upgrade HID screw-base fixtures quickly with a durable LED corncob that lets you set both output and color on-site. This selectable lamp streamlines stocking, reduces maintenance, and delivers reliable performance in enclosed fixtures and damp locations.
KEY FEATURES:
- Selectable Output: Choose 5W, 10W, or 20W to match required light levels and save energy.
- Tunable Color: Switch between 3000K, 4000K, or 5000K for the desired ambiance.
- Universal Input: Operates on 120–277V for flexible retrofit compatibility.
- Direct Wire: Ballast bypass design for dependable line-voltage operation.
- Rugged Build: Enclosed-fixture rated with IP64 protection and 4kV surge suppression.
- Standard Socket: E26 medium base installs into common screw-in housings.
- Wide Distribution: 180° output provides broad, uniform illumination.
APPLICATIONS:
- Wall packs and security fixtures
- Area lights and site lighting
- Post tops and canopy luminaires
- Tip: Set wattage and CCT on the selector dial before energizing the circuit.
SPECIFICATIONS:
- Wattage: 5W/10W/20W (selectable)
- Lumens: 850L/1500L/3000L
- Color Temperature: 3000K/4000K/5000K
- CRI: 80+
- Voltage: 120V–277V
- Operating Frequency: 50–60Hz
- Base Type: E26 (Medium)
- Shape/Category: Corncob LED Lamp
- Beam Spread: 180°
- Dimmable: Yes (see note)
- Dimming Note: Dimmable only via the wattage/lumen selectable dial included on lamp
- Ballasting Requirements: Ballast Bypass
- Operating Position: Horizontal
- Power Factor: >0.9
- Operating Temperature: -30C (-22F) to +45C (+113F)
- Surge Protection: Built-in 4kV
- Lens Material: Plastic
- Housing Color: White
- MOL: 5.43 in
- MOD: 3.62 in
- Weight: 1 lb
- IP Rating: IP64
- Location Rating: Damp
- Rated For Enclosed Fixture: Yes
- Lifespan: 50,000 hours
- Safety Listings: cULus - Certified; cULus - Classified; cULus - Listed
- DLC Approved: No
- California Status: Non-Compliant
- Title 20 / 24 Status: Non-Compliant
- RoHS Compliant: Yes
- FCC Compliant: Yes
- Warranty: 5-Years
- Minimum Compartment Size: L: 8 in, W: 8 in, H: 11 in
