Description

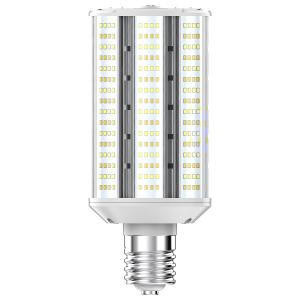

40W/LED/WP/CCT/EX39/100-277V Adjustable Hi-Pro LED Corncob for Wall Pack and Area Fixtures | CCT Selectable | Type B Bypass
Upgrade legacy HID wall packs and area lights with a durable, energy-saving LED retrofit that installs after a simple ballast bypass. This Hi-Pro corncob lamp delivers field-selectable wattage and color settings to fine-tune light output, cut maintenance, and standardize inventory across multiple applications.
KEY FEATURES:
- Flexible Tuning: Select 20W/30W/40W and 3000K/4000K/5000K to match light levels and ambiance on site.
- Simple Retrofit: EX39 mogul base fits many HID fixtures after bypassing the ballast.
- Built to Last: Rated for enclosed fixtures with IP64 protection and 4kV surge suppression.
- Reliable Operation: 50,000-hour life and flicker-free performance reduce service calls.
- Purpose-Built: Horizontal operating position ideal for wall packs and area luminaires.
APPLICATIONS:
- Wall packs in commercial exteriors and perimeters.
- Area and site fixtures in parking lots and campuses.
- Parking garage luminaires and canopy fixtures.
- Tip: Verify fixture compartment minimum 8" L x 8" W x 11" H before installing.
SPECIFICATIONS:
- Wattage (Selectable): 20W/30W/40W
- Lumens: 3200/4700/6000
- Color Temperature (Selectable): 3000K/4000K/5000K
- CRI: 80
- Beam Spread: 180
- Voltage: 100-277V
- Base: EX39 (Mogul Extended)
- Shape: Corncob
- Lamp Type: Corncob
- Technology: LED
- Operation: Ballast Bypass (Type B)
- Operating Position: Horizontal
- Operating Frequency: 50-60Hz
- Power Factor: >0.9
- IP Rating: IP64
- Location Rating: Damp
- Enclosed Fixture Rated: Yes
- Surge Protection: Built-in 4kV
- Operating Temperature: -30C (-22F) to +45C (+113F)
- Minimum Compartment Size: 8 in. (L) x 8 in. (W) x 11 in. (H)
- MOL: 8.43 in.
- MOD: 3.62 in.
- Lens Material: Plastic
- Housing Color: White
- Weight: 1.65 lb.
- Hours Rated: 50,000
- Warranty: 5 Year Limited - Hi-Pro
- HID Equivalent: 175W
- Incandescent Equivalent: 100W
- Safety Listing: cULus Listed
- DLC Approved: Yes (DLC ID: PRDYRJJ3)
- Energy Star: No
- California Status: Lawful for sale in California
- Title 20 / 24 Status: Lawful for sale
- RoHS Compliant: Yes
- FCC Compliant: Yes
