Description

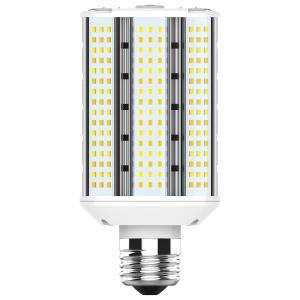

30W/LEDWP/CCT/E26/100-277V Compact LED Corn Cob HID Replacement | CCT Selectable | E26 Medium Base | Type B Ballast Bypass
Streamline HID-to-LED upgrades with a selectable, plug-free solution that reduces energy use and maintenance. This compact corn cob lamp delivers flexible light output and color options, installs in existing fixtures with a medium base, and is built for dependable operation in demanding environments.
KEY FEATURES:
- Flexible Output: Wattage-selectable (10W/20W/30W) design tailors brightness to each application.
- Tunable Color: Switch between Warm, Neutral, or Daylight tones (3000K/4000K/5000K) for the right ambiance.
- Simple Retrofit: Type B ballast bypass eliminates ballast failures and simplifies maintenance.
- Durable Build: IP64 protection and 4kV surge resistance for reliable performance.
- Enclosed Fixture Rated: Safe for use in enclosed luminaires and damp locations.
APPLICATIONS:
- Warehouses and industrial aisles
- Parking garages and canopies
- Post-top and area fixtures
- Usage Tip: Set wattage and CCT using the onboard controls before power-up.
SPECIFICATIONS:
- Watts: 10W/20W/30W (Selectable)
- Incandescent Equivalent: 50W-70W
- HID Equivalent: 150W-175W
- Volts: 100V-277V
- Shape: Corncob
- Base: Medium (E26)
- Finish: White
- CCT: 3000K/4000K/5000K
- CRI: 80
- Lumens: 1700/3200/4500
- Beam Spread: 180°
- Dimmable: Yes (via wattage/lumen selectable dial)
- Hours Rated: 50,000
- Lamp Type: Corncob
- Technology: LED
- Ballasting Requirements: Ballast Bypass
- Operating Frequency: 50-60Hz
- Power Factor: >0.9
- Operating Position: Horizontal
- Surge Protection: Built-in 4kV
- Operating Temperature: -30°C (-22°F) to +45°C (+113°F)
- MOL: 7 in.
- MOD: 3.62 in.
- Lens Material: Plastic
- Housing Color: White
- Weight: 1.45 lb.
- Rated For Enclosed Fixture: Yes
- IP Rating: IP64
- Location Rating: Damp
- Warranty: 5 Year Limited - Hi-Pro
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cULus - Listed
- Energy Star: No
- DLC Approved: No
- California Status: Lawful for sale (Title 20/24: Lawful for sale)
- RoHS Compliant: Yes
- FCC Compliant: Yes
