Description

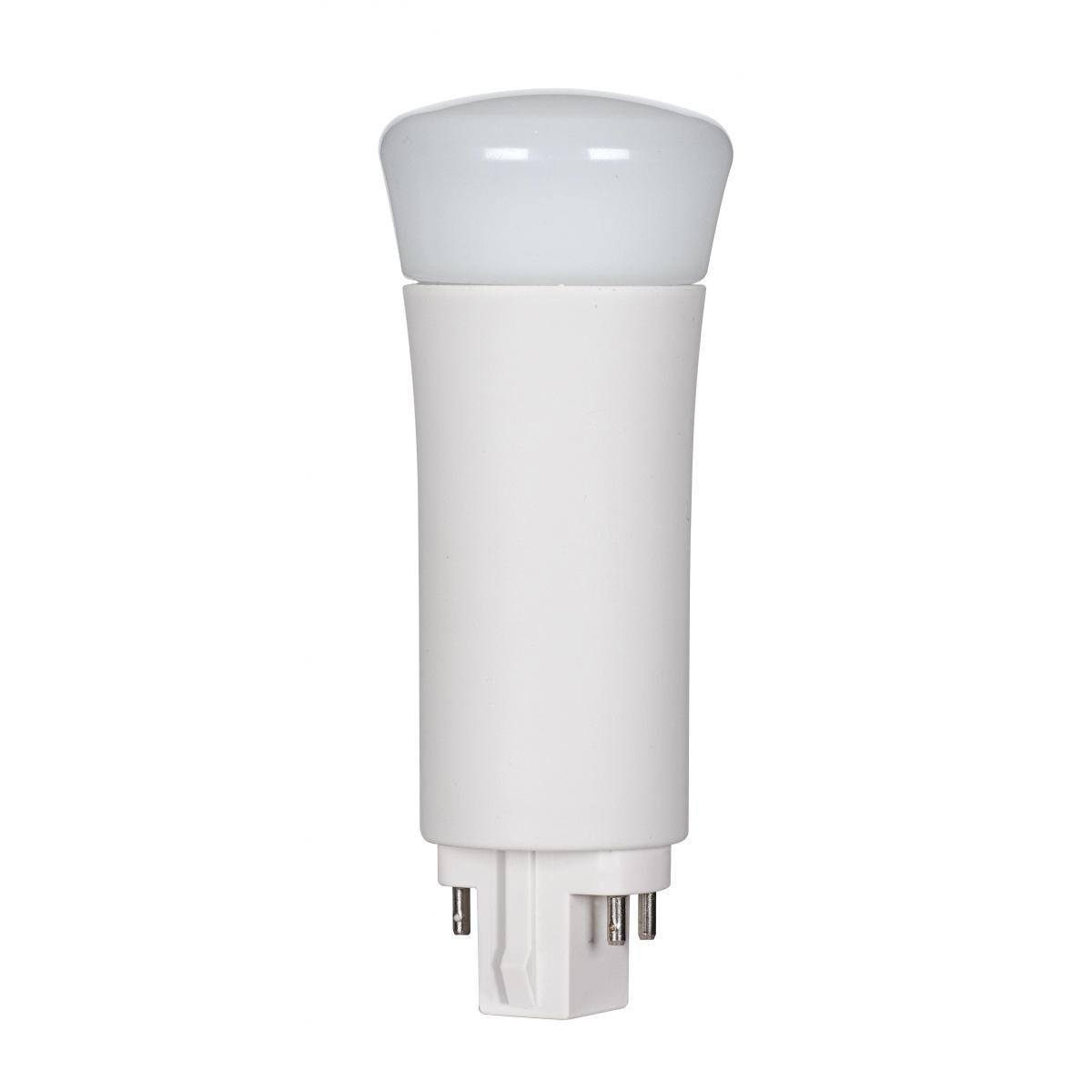

9WPLV/LED/840/DR/4P High-Efficiency PL LED Retrofit Lamp | Cool White | GX24q 4-Pin Base | Type A Plug-and-Play
Streamline your CFL-to-LED upgrades with a plug-and-play lamp that works on existing electronic ballasts. This compact PL replacement delivers clean, neutral illumination and long service life, reducing maintenance visits while improving light quality in everyday commercial spaces.
KEY FEATURES:
- Quick Upgrade: Type A design installs using compatible ballasts for minimal downtime.
- Comfortable Light: Cool White (4000K) output supports productive, neutral-toned environments.
- Compact Form: Low-profile MOL fits most existing PL housings without rework.
- Enclosed Ready: Rated for enclosed fixtures to expand application options.
- Long-Life Performance: 50,000-hour rating cuts replacement cycles and service calls.
- Rebate Friendly: DLC approved to help qualify for utility incentives.
APPLICATIONS:
- Offices and commercial ceiling grids
- Healthcare corridors and patient areas
- Retail aisles and back-of-house spaces
- Usage Tip: Verify ballast compatibility and install in G24q 4-pin sockets.
SPECIFICATIONS:
- Wattage: 9W
- Lumens: 1100
- Color Temperature: 4000K
- CRI: 82
- Base Type: G24q (4-Pin)
- Operation: Type A (Ballast Required)
- Beam Spread: 120
- Operating Frequency: 50/60Hz
- Power Factor: 0.9
- THD: 20%
- Operating Temperature: -20C (-4F) to +45C (+113F)
- MOL: 4.69
- MOD: 1.91
- Finish: Frost
- Shape: PL
- Lamp Type: PL
- Operating Position: Base Up or Down
- Technology: LED
- Housing Color: White
- Rated For Enclosed Fixture: Yes
- Location Rating: Damp
- DLC Approved: Yes (DLC ID: PLZ5IXXDQS03)
- Safety Listing: cULus
- Warranty: 5 Year Limited - 10 hr per day
- Working Voltage: Ballast dependent
- Ballasting Requirements: Ballast required
