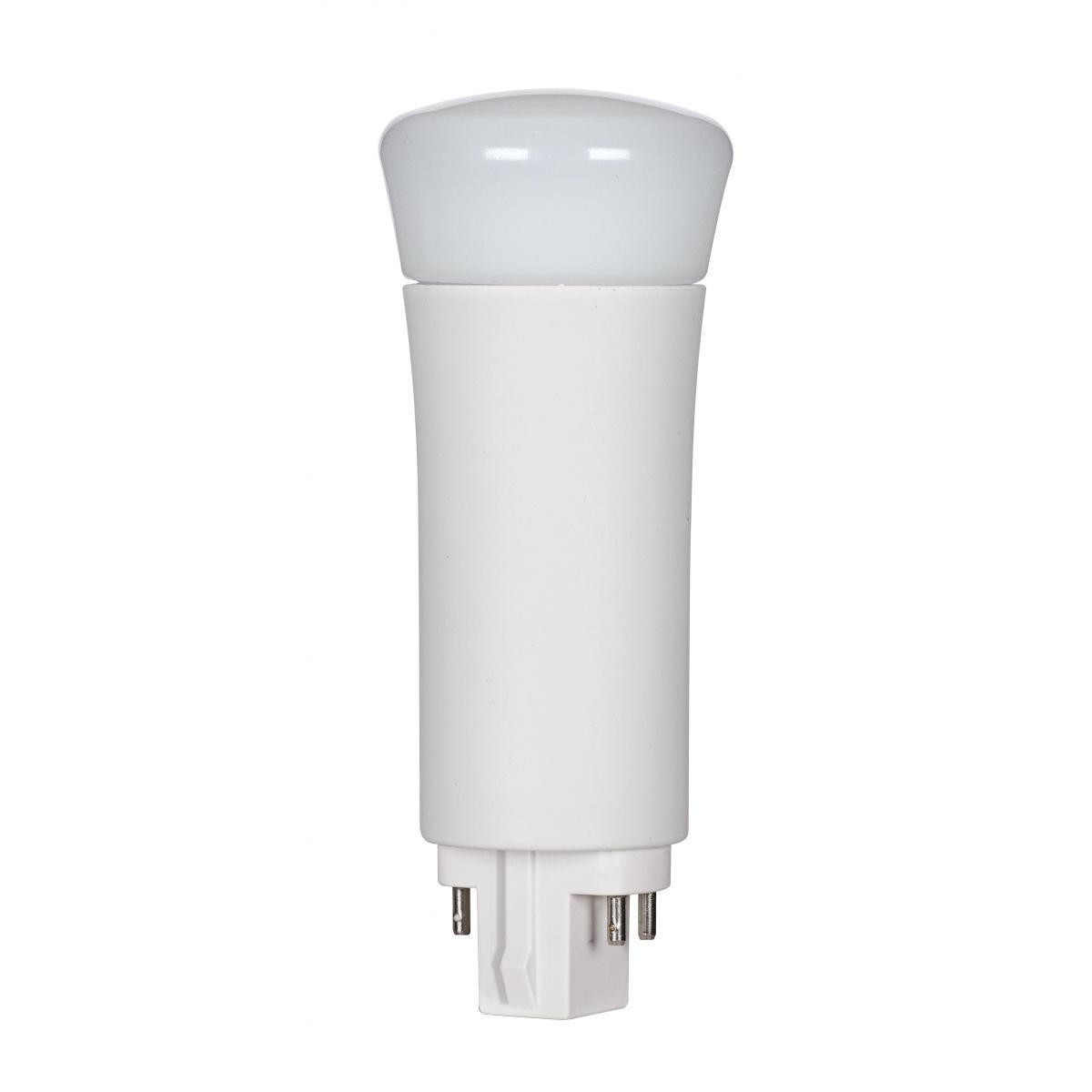

9WPLV/LED/850/DR/4P High-Efficiency PL LED Plug-In Lamp | Daylight | Type A Ballast-Compatible | G24q 4-Pin Retrofit
Streamline your CFL-to-LED upgrades with fast, plug-and-play installation using existing G24q ballasts. This compact PL LED delivers crisp Daylight illumination, reduces maintenance with a 50,000-hour life, and is rated for enclosed fixtures and damp locations.
KEY FEATURES:
- Quick Upgrade: Type A design works with compatible ballasts for rapid changeouts.
- Consistent Visual Comfort: Daylight color improves clarity in task and commercial spaces.
- Compact Fit: PL form factor with G24q 4-pin base fits base-up or base-down fixtures.
- Lower Maintenance: Long 50,000-hour life reduces relamping and service calls.
- Rebate Ready: DLC approved for potential utility incentives.
APPLICATIONS:
- Office troffers and ceiling grid fixtures
- Healthcare and educational facilities
- Retail and hospitality corridors
- Usage tip: Install in G24q 4-pin sockets with a compatible ballast
SPECIFICATIONS:
- Wattage: 9W
- Fluorescent Equivalent: 18W/26W/32W/42W
- Ballast Type: Type A (Ballast Required)
- Shape: PL
- Base: G24q (4-Pin)
- Finish: Frost
- Color Temperature: 5000K
- CRI: 82
- Lumens: 1100
- Beam Spread: 120
- Hours Rated: 50,000
- Operating Position: Base Up or Down
- Ballasting Requirements: Ballast required
- Working Voltage: Ballast dependent
- Operating Frequency: 50/60Hz
- Power Factor: 0.9
- THD: 20%
- Operating Temperature: -20C (-4F) to +45C (+113F)
- MOL: 4.69"
- MOD: 1.91"
- Housing Color: White
- Enclosed Fixture Rated: Yes
- Warranty: 5 Year Limited - 10 hr per day
- Safety Listing: cULus
- Location Rating: Damp
- DLC Approved: Yes (ID: PLOEEYBT3BN0)
- Energy Star: No
- RoHS Compliant: Yes
