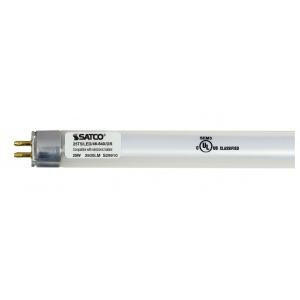

25T5/LED/46-840/DR High-Output 4-Foot Linear T5 LED Tube | Cool White | Type A Ballast Compatible | Instant-On Retrofit
Upgrade existing T5 fixtures without rewiring—this plug-and-play LED tube works with compatible ballasts to cut energy use while delivering bright, even illumination. Enjoy reduced maintenance thanks to long-life performance, wide 185° distribution, and enclosed-fixture compatibility for hassle-free retrofits.
KEY FEATURES:
- Quick Retrofit: Type A operation installs directly with compatible ballasts—no rewiring required.
- Bright, Comfortable Light: 3500 lumens with a wide 185° beam for uniform coverage.
- Versatile Use: Enclosed-fixture and damp-location rated for broader applications.
- Enhanced Reliability: Integrated thermal fuse at pins helps protect the lamp and fixture.
- Rebate Ready: DLC approved for potential utility incentives.
APPLICATIONS:
- Offices and commercial workspaces
- Retail aisles and storerooms
- Schools and educational facilities
- Tip: For dimming, verify ballast compatibility per manufacturer guidance.
SPECIFICATIONS:
- Wattage: 25W
- Lumens: 3500
- Color Temperature: 4000K
- CRI: 82
- Beam Spread: 185°
- Voltage: 120V–277V
- Operation: Type A (Ballast Required)
- Dimmable: Yes (Type A only; check ballast manufacturer for compatibility)
- Operating Frequency: 50/60Hz
- Power Factor: 0.9
- THD: 20%
- Operating Temperature: -20°C (-4°F) to +45°C (+113°F)
- Base: Miniature Bi Pin (G5)
- Shape: T5 Linear
- Nominal Length: 48"
- MOL: 46"
- MOD: 0.63"
- Material: Aluminum / Glass
- Lens Material: Glass
- Lens Finish: Gloss
- Finish: Gloss
- Weight: 0.3 lb
- Incandescent Equivalent: 100W
- Fluorescent Equivalent: 54W
- Rated For Enclosed Fixture: Yes
- Location Rating: Damp
- Warranty: 5 Year Limited - T5 LED Bulbs
- Integrated Feature: Thermal fuse at pins
- Safety Listing: cULus Listed
- DLC Approved: Yes (DLC ID: PLYBR7TV2C9K)
- NSF Approved: Yes
- RoHS Compliant: Yes
- FCC Compliant: Yes
