Description

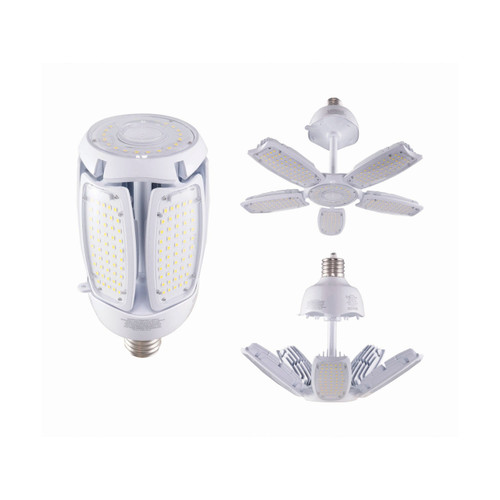

High-Output Industrial LED Retrofit Bulb For Warehouses And Outdoor Areas | Daylight 5000K | Type B Ballast Bypass
Designed to replace HID lamps in large-scale fixtures, this 90W LED corncob bulb delivers bright, maintenance-reducing Daylight output with Type B ballast bypass for straightforward retrofit installations in industrial and outdoor environments.
KEY FEATURES:
- High Output: 12,600 lumens replaces up to 600W HID while consuming 90W.
- Reliable Performance: Rated 50,000 hours with 80+ CRI for consistent, clear illumination.
- Retrofit Ready: Type B ballast bypass design for direct-line installation with a Mogul (EX39) base.
- Versatile Beam Control: Selectable beam angles (120° / 150° / 260°) for closed, partial, or open fixture applications.
- Rugged and Weather Resistant: IP64 rating, built-in 4KV surge protection, and operation from -20°C to +65°C.
APPLICATIONS:
- Ideal for warehouses and distribution centers.
- Suitable for parking garages and exterior wall-mounted fixtures.
- Great for security and perimeter lighting where high output is required.
- Usage Tip: Use in fixtures that accept Mogul (EX39) bases and are not vapor-tight; rated for enclosed fixtures unless otherwise restricted.
SPECIFICATIONS:
- Wattage: 90W
- Lumens: 12,600
- Color Temperature: Daylight 5000K
- CRI: 80+
- Voltage: 120V-277V
- Base Type: Mogul Extended (EX39)
- Lamp Type: Corncob
- Beam Angle: 120° / 150° / 260°
- Hours Rated: 50,000
- Dimmable: No
- Operating Temp: -20°C to +65°C
- Operating Position: Base Up Or Down
- IP Rating: IP64
- Power Factor: >0.9
- THD: <20%
- Warranty: 5-Years
- HID Equivalent: 600W
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: cULus Certified / Classified / Listed
- Location Rating: Suitable for Damp locations; Indoor and Outdoor use
- Compliance: RoHS Compliant; FCC Compliant; CA and state statuses listed
- Installation Notes: Not for use in vapor tight fixtures. Photo cell optional; PIR sensor available as accessory.
- Surge Protection: Built-in 4KV
