Description

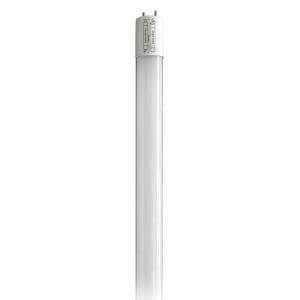

14T8/LED/48-830/BP/SE-DE Direct-Wire 48-Inch LED T8 Replacement | Soft White | Type B Single Or Double-Ended Operation
Upgrade fluorescent fixtures with a reliable, direct-wire Type B LED solution that installs quickly and reduces maintenance. This 48-inch T8 provides comfortable Soft White illumination and supports both single- or double-ended wiring, making retrofits simpler across a range of commercial applications.
KEY FEATURES:
- Fast Retrofit: Direct-wire ballast bypass simplifies installation and reduces downtime.
- Flexible Wiring: Works with single- or double-ended power for versatile retrofit scenarios.
- Comfortable Light: Soft White 3000K illumination enhances visual comfort in occupied spaces.
- Safer Handling: Built-in shock-resistant circuit is not energized until both ends are installed.
- Trusted Performance: 1700 lumens with a 0.9 power factor for consistent, efficient output.
APPLICATIONS:
- Offices
- Schools
- Retail Aisles
- Usage Tip: Verify single- or double-ended wiring before installation for fastest results.
SPECIFICATIONS:
- Wattage: 14W
- Lumens: 1700
- Color Temperature: 3000K
- CRI: 82
- Beam Angle: 210°
- Voltage: 120V–277V
- Ballast Type: Type B (Ballast Bypass)
- Operating Frequency: 50/60Hz
- Power Factor: 0.9
- THD: 20%
- Operating Temperature: -20°C (-4°F) to +45°C (+113°F)
- Shape: T8
- Base: G13 (Medium Bi Pin)
- Nominal Length: 48 in
- MOL: 47.78 in
- MOD: 1.1 in
- Material: Glass
- Lens Finish: Gloss White
- Housing Color: White
- Weight: 0.44 lb
- Location Rating: Damp
- Safety Listing: cULus Classified; cRUus Recognized Component
- DLC Approved: Yes (DLC ID: PLSTQCAUKZMU)
- Compliance: RoHS; FCC; NSF
- Warranty: 5-Year Limited
- Model Code: 14T8/LED/48-830/BP/SE-DE
