Description

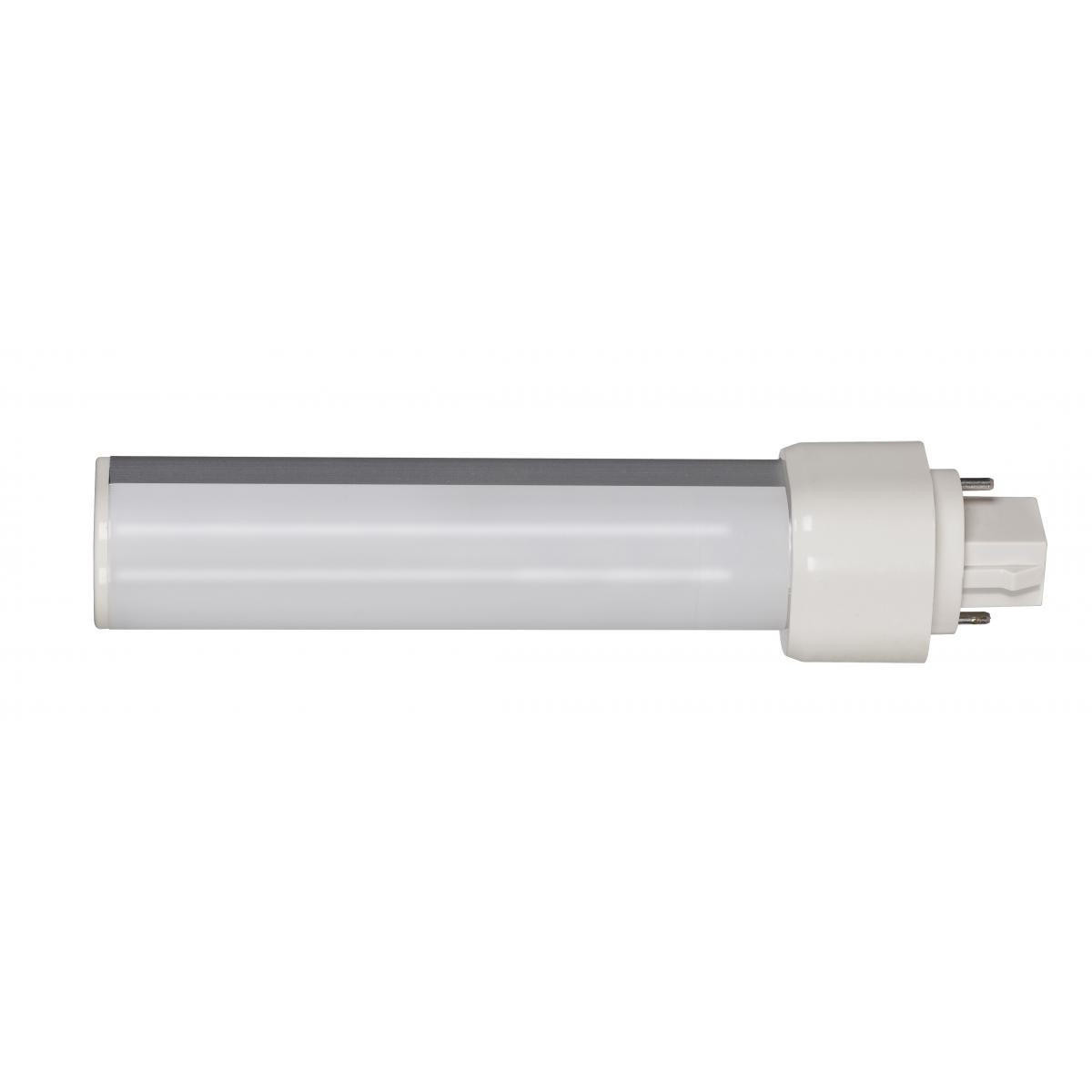

9WPLH/LED/827/BP/2P Quick-Install LED PL Replacement For 2-Pin G24d | Warm White (2700 K) | Type B Direct Wire Retrofit
Upgrade aging CFL plug-in lamps with a reliable, direct-wire LED solution that cuts maintenance and eliminates ballast failures. This warm white PL replacement delivers consistent light, easy installation, and long service life for high-traffic environments.
KEY FEATURES:
- Fast Retrofit: Type B ballast-bypass design simplifies installation and removes ballast failure points.
- Broad Socket Compatibility: Works in both 2-pin (magnetic) and 4-pin (electronic) sockets.
- Warm, Comfortable Light: 2700K output creates welcoming ambience for hospitality and residential areas.
- Uniform Coverage: 120 beam spread delivers even illumination in recessed and ceiling fixtures.
- Low Maintenance: Rated 50,000 hours to reduce relamping and service calls.
APPLICATIONS:
- Hotels, guest rooms, and corridors
- Restaurants, lobbies, and reception areas
- Multi-family hallways and common spaces
- Usage Tip: Install for horizontal operation to match fixture orientation
SPECIFICATIONS:
- Wattage: 9W
- Lumens: 900
- Color Temperature: 2700K
- CRI: 82
- Beam Spread: 120
- Voltage: 120V-277V
- Ballast Type: Type B
- Wiring: Ballast Bypass (Direct Wire Only)
- Base: G24d (2-Pin)
- Finish: Frost
- Shape: PL
- Burning Position: Horizontal Operation
- Operating Frequency: 50/60 Hz
- Operating Temperature: -20C to +45C
- MOL: 6.63
- MOD: 1.09
- Lifespan: 50,000 hours
- Safety Listing: cULus Classified
- Location Rating: Damp
- California Status: Lawful for sale
- RoHS Compliant: Yes
- Energy Star: No
- CFL Replacement: In G24d (2-pin) sockets replaces 18W and 26W CFLs; in G24q (4-pin) sockets replaces 13W, 18W, and 26W CFLs
- Installation Note: 2-pin LED lamps work in both 2-pin (magnetic) and 4-pin (electronic) sockets
- Warranty: 5 Year Limited - 10 hr per day
