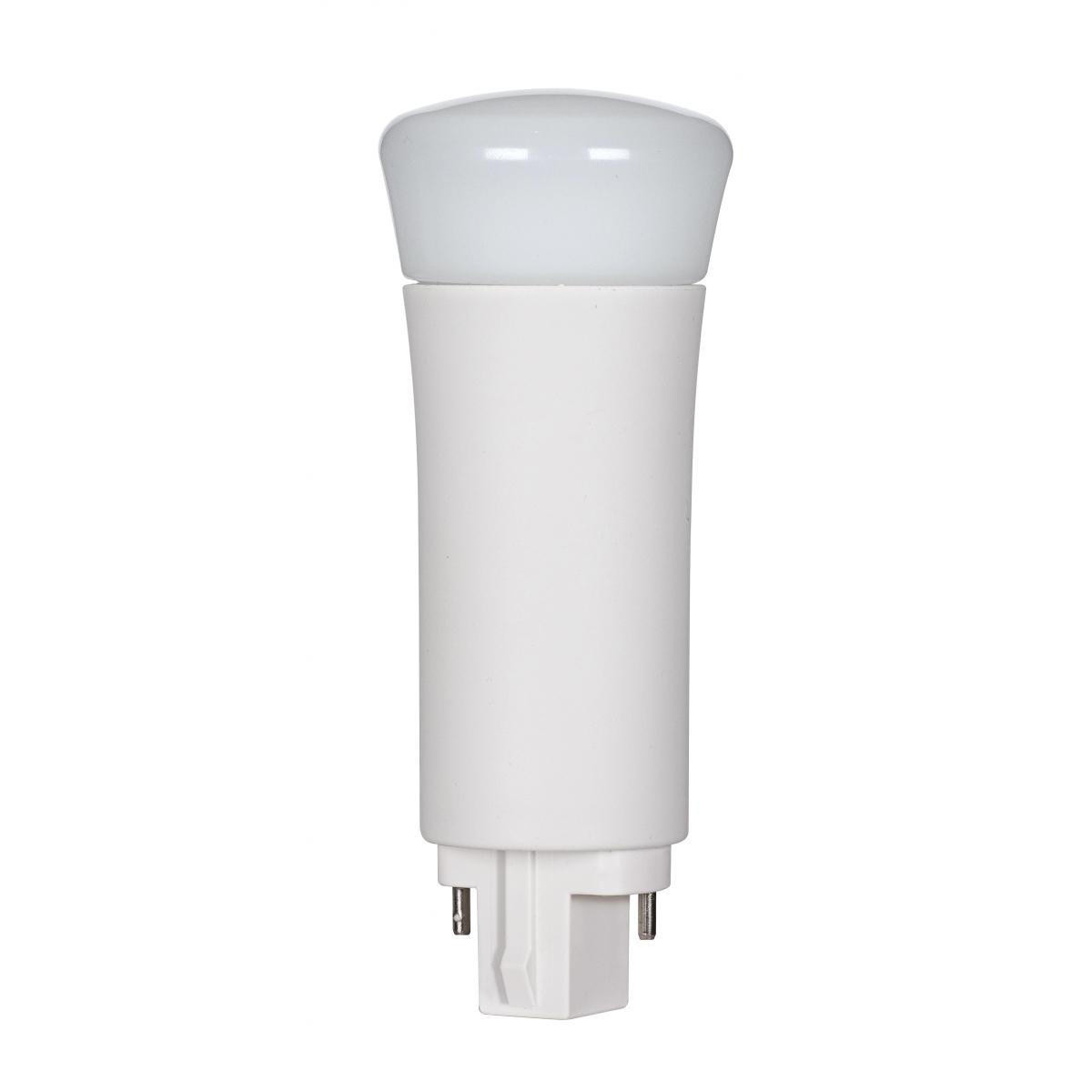

9WPLV/LED/850/BP/2P Efficient 2-Pin PL LED Retrofit Lamp | Daylight | Type B Ballast Bypass | G24d Base Vertical Install
Upgrade compact fluorescent fixtures with a durable LED solution that installs via direct-wire bypass for reliable, flicker-free performance. This 2-pin PL lamp delivers clean Daylight illumination, reduces maintenance with a 50,000-hour rating, and is engineered for vertical operation in commercial settings.
KEY FEATURES:
- Direct-Wire Reliability: Type B ballast bypass eliminates ballast failures and simplifies maintenance.
- Versatile Fit: Works in both 2-pin (magnetic) and 4-pin (electronic) sockets per installation notes.
- Clear Visibility: Daylight 5000K light improves clarity in task and ambient applications.
- Wide, Even Coverage: 120° beam angle enhances uniformity in downlights and ceiling fixtures.
- Built for Duty: Damp-location rated and designed for vertical operation in commercial environments.
APPLICATIONS:
- Offices and commercial corridors.
- Healthcare clinics and patient areas.
- Retail aisles and ceiling can fixtures.
- Tip: Install for vertical operation after completing ballast bypass per instructions.
SPECIFICATIONS:
- Wattage: 9W
- Lumens: 1000
- Color Temperature: 5000K
- CRI: 82
- Beam Spread: 120°
- Voltage: 120V–277V
- Operation Type: Type B (Ballast Bypass – Direct Wire Only)
- Base: G24d (2-Pin)
- Shape: PL
- Finish: Frost
- Dimmable: No
- Lifespan: 50,000 hours
- Operating Frequency: 50/60 Hz
- Operating Temperature: -20C (-4F) to +45C (+113F)
- Burning Position: Vertical Operation
- Location Rating: Damp
- Safety Listing: cULus Classified
- Energy Star: No
- California Status: Lawful for sale
- RoHS Compliant: Yes
- Warranty: 5 Year Limited - 10 hr per day
- MOL: 4.69
- MOD: 1.91
- Additional Info: In G24d (2-pin) sockets replaces 18 and 26W CFLs; in G24q (4-pin) sockets replaces 13, 18, and 26W CFLs
- Installation Notes: 2-pin LED lamps work in both 2-pin (magnetic) and 4-pin (electronic) sockets
