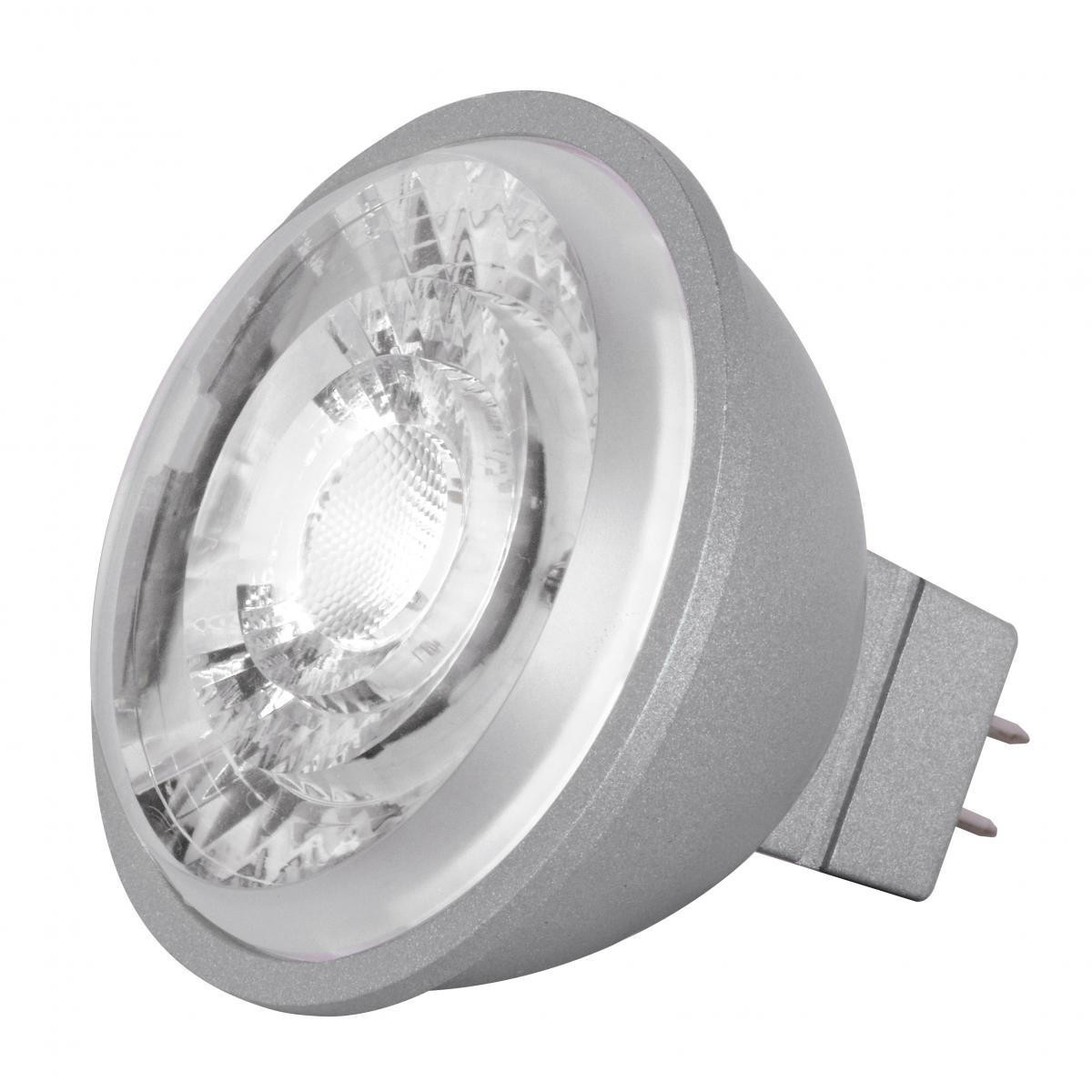

8MR16/LED/15'/40K/90CRI/12V Precision MR16 LED Spot | Cool White | GU5.3 Bi-Pin | 15° Narrow Beam | 12V Dimmable
Upgrade accent lighting with precise, consistent illumination and minimal maintenance. This 12V MR16 delivers a tight 15° beam for crisp highlights, high 90 CRI for vibrant color, and smooth phase dimming. Rated for enclosed fixtures and built for long service, it simplifies retrofits in display and recessed applications.
KEY FEATURES:
- Pinpoint Accents: 15° narrow beam focuses light exactly where you need it.
- Color-Rich Output: 90 CRI enhances product and artwork detail.
- Smooth Dimming: Compatible with forward/reverse phase and triac controls.
- Enclosed Fixture Safe: Designed and rated for use in enclosed luminaires.
- Reduced Maintenance: 25,000-hour life cuts relamping frequency.
- Reliable Operation: Performs from -25°C to +45°C for varied environments.
APPLICATIONS:
- Retail display lighting and showcases
- Museums and art galleries
- Hospitality and restaurant accent lighting
- Tip: Aim the 15° beam 6–12 ft from the target for crisp highlights.
SPECIFICATIONS:
- Wattage: 8W
- Incandescent Equivalent: 75W
- Voltage: 12V
- Shape: MR16
- Base: GU5.3 Bi-Pin
- CCT: 4000K
- Color Temperature: Cool White
- CRI: 90
- Lumens: 490
- Beam Angle: 15°
- CBCP: 3700
- Dimmable: Yes
- Dimming Type: Forward Phase, Reverse Phase, Phase Selectable, Triac
- Power Factor: 0.9
- Operating Temperature: -25°C (-13°F) to +45°C (+113°F)
- MOL: 1.88
- MOD: 2.0
- Lens Finish: Clear (Lensed Lamp)
- Housing Color: Gray
- Rated for Enclosed Fixture: Yes
- Hours Rated: 25,000
- Safety Listing: cULus
- Location Rating: Damp
- Energy Star: No
- California T24: Compliant
- RoHS Compliant: Yes
- FCC Compliant: Yes
- Warranty: 5 Year Limited (10 hr per day)
